SOL Driver

Product instruction:

SOL provide AC to DC driver for DC light engine series, make your design of lighting and retrofit work high performance and fast.

DALI interface and 0-10v interface series also developed by SOL for smart lighting system.

Features

Single - channel constant pressure output.
Dali digital control input , dimming control led module.
Dimming range from 0 - 100 % ( led brightness starts at 1 % ).
Support for touch dimmer ( 220 vac dimming mode )
With the self-test function,support short circuit and overcurrent protection functions.
Single channel constant voltage output,Max.8A per channel.
Analog Signal driver,receive 1-10V dimming signal.

Specification

Image	Part No.	Input	Out put	Max power	Signal Input	Size(mm)	Data Sheet

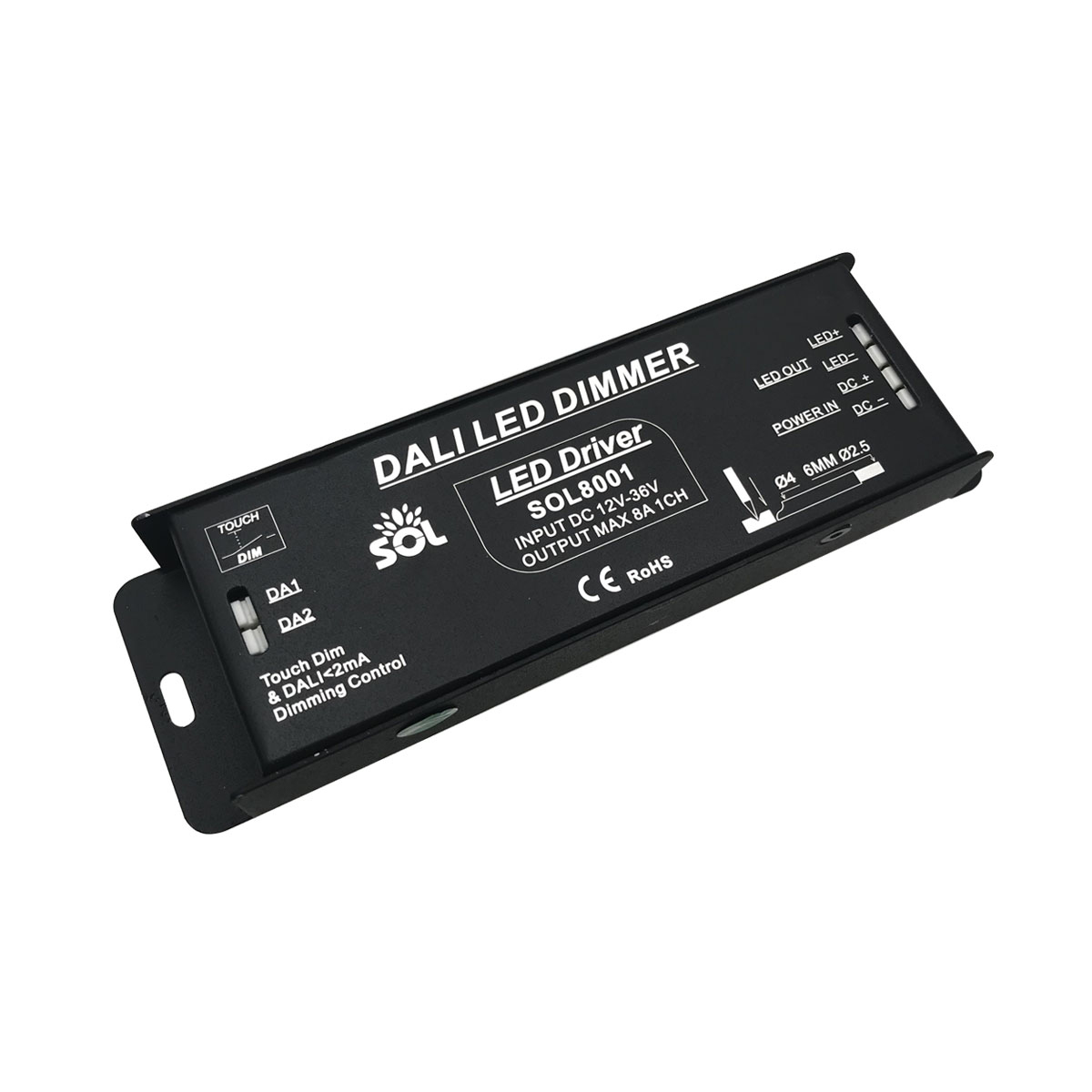

	SOL8100	DC12-36V	Max 8A	96-288W	DALI-Switch	1604722

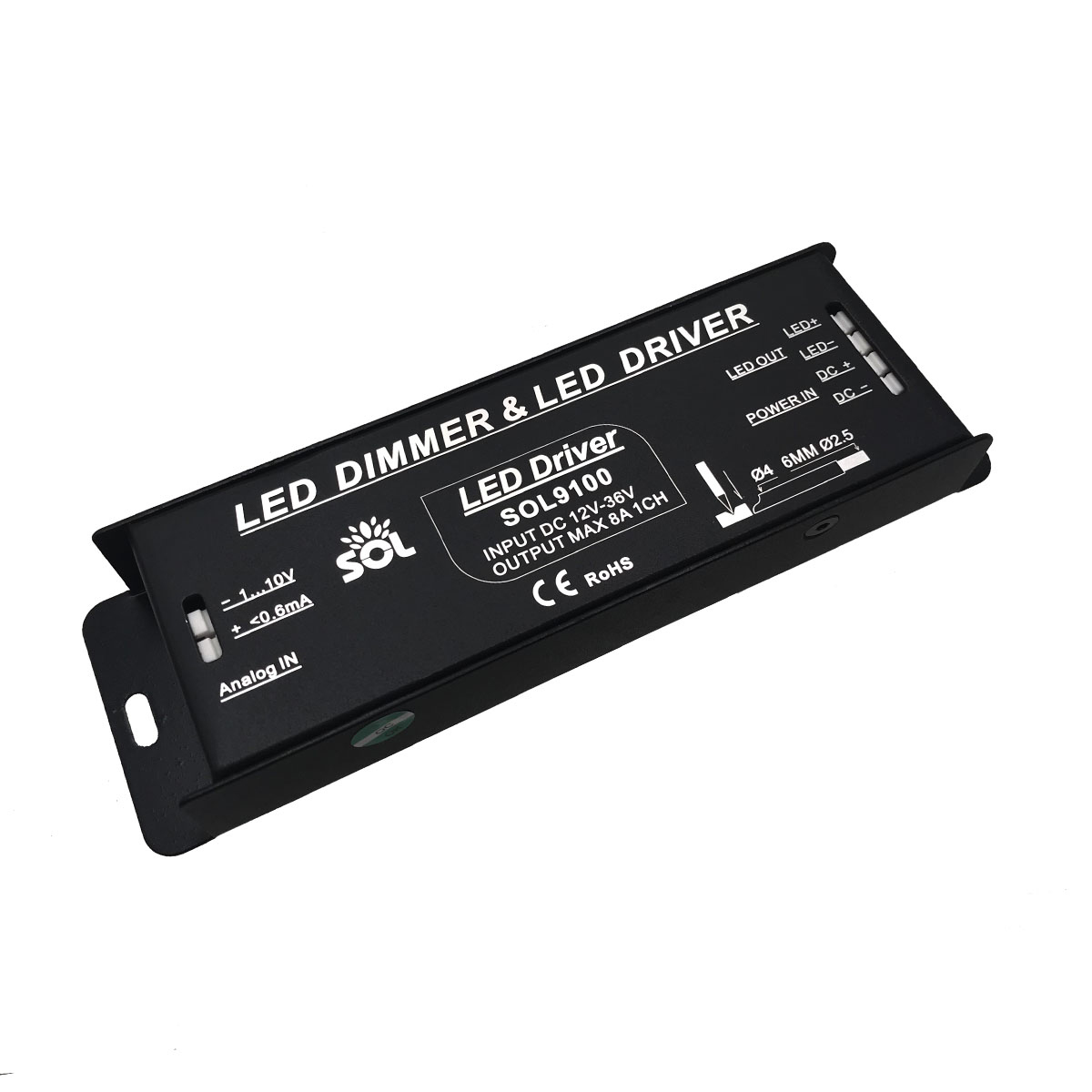

	SOL9100	DC12-36V	Max 8A	96-288W	0/1-10V	1604722

Image	Part No.	Input Voltage	Rated Load	Output current	Output Voltage	Size(mm)	Data Sheet

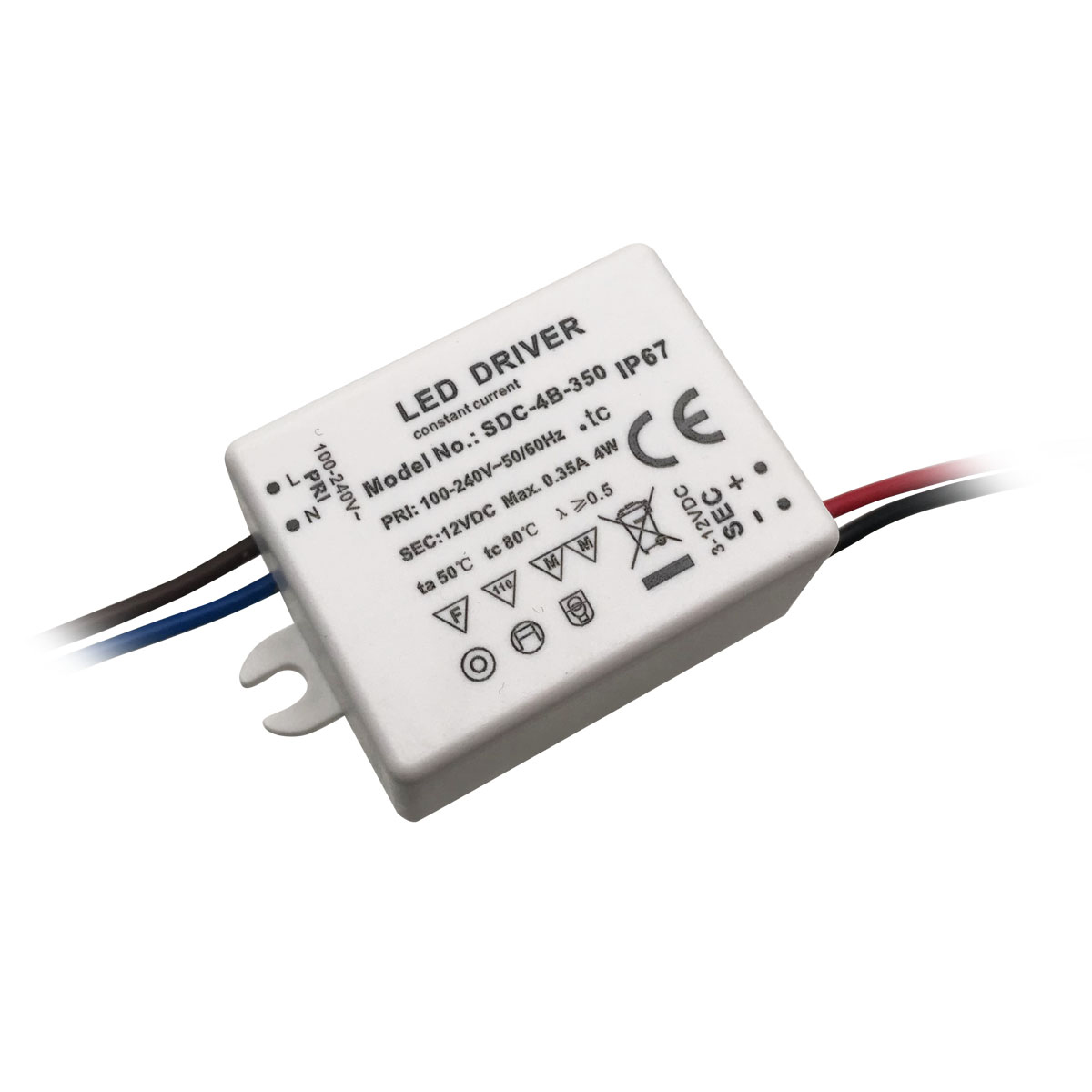

	SDC-4B-350	100-240V	4w	350mA	3-12V	534121

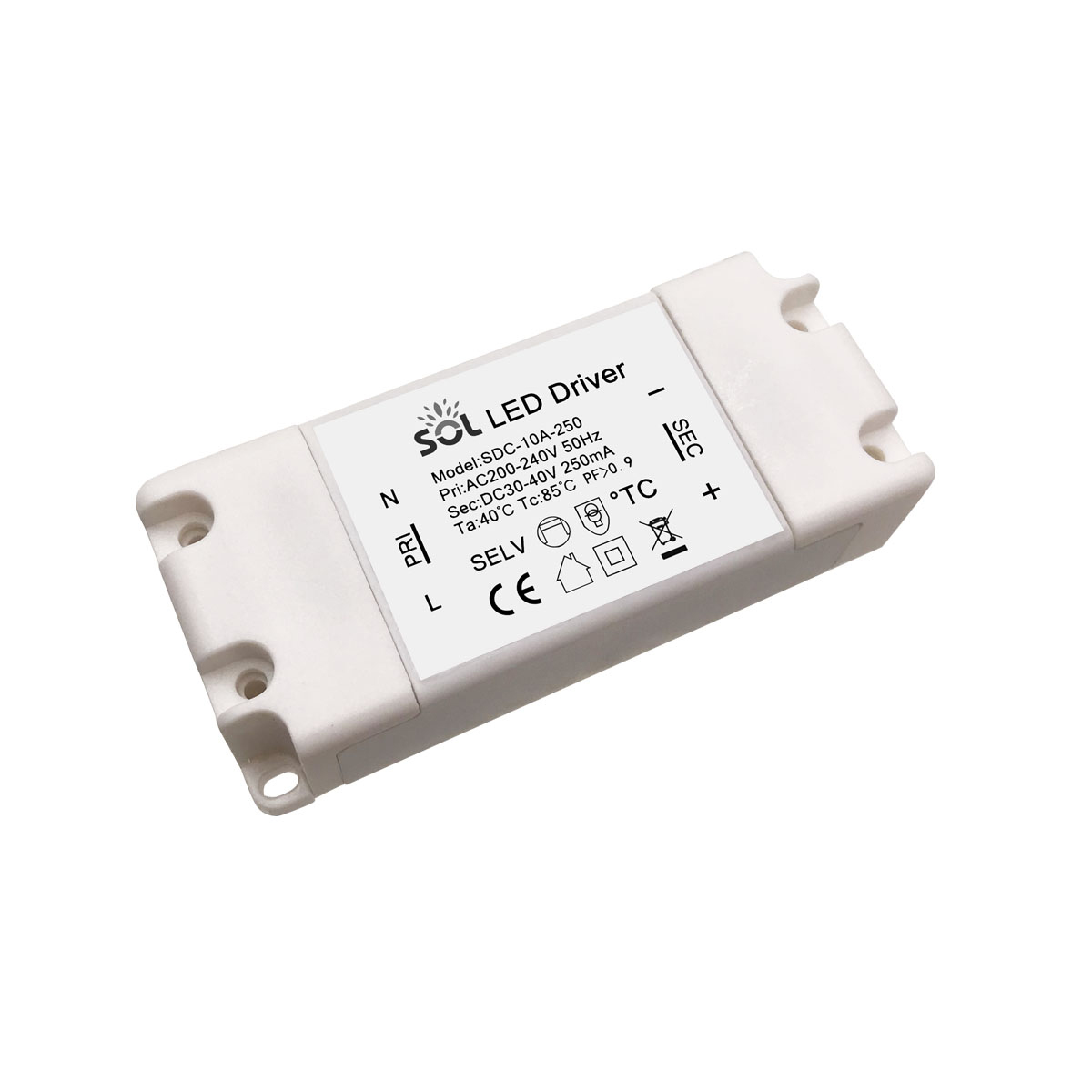

	SDC-10A-250	200-240V	10W	250mA	30-40V	883821

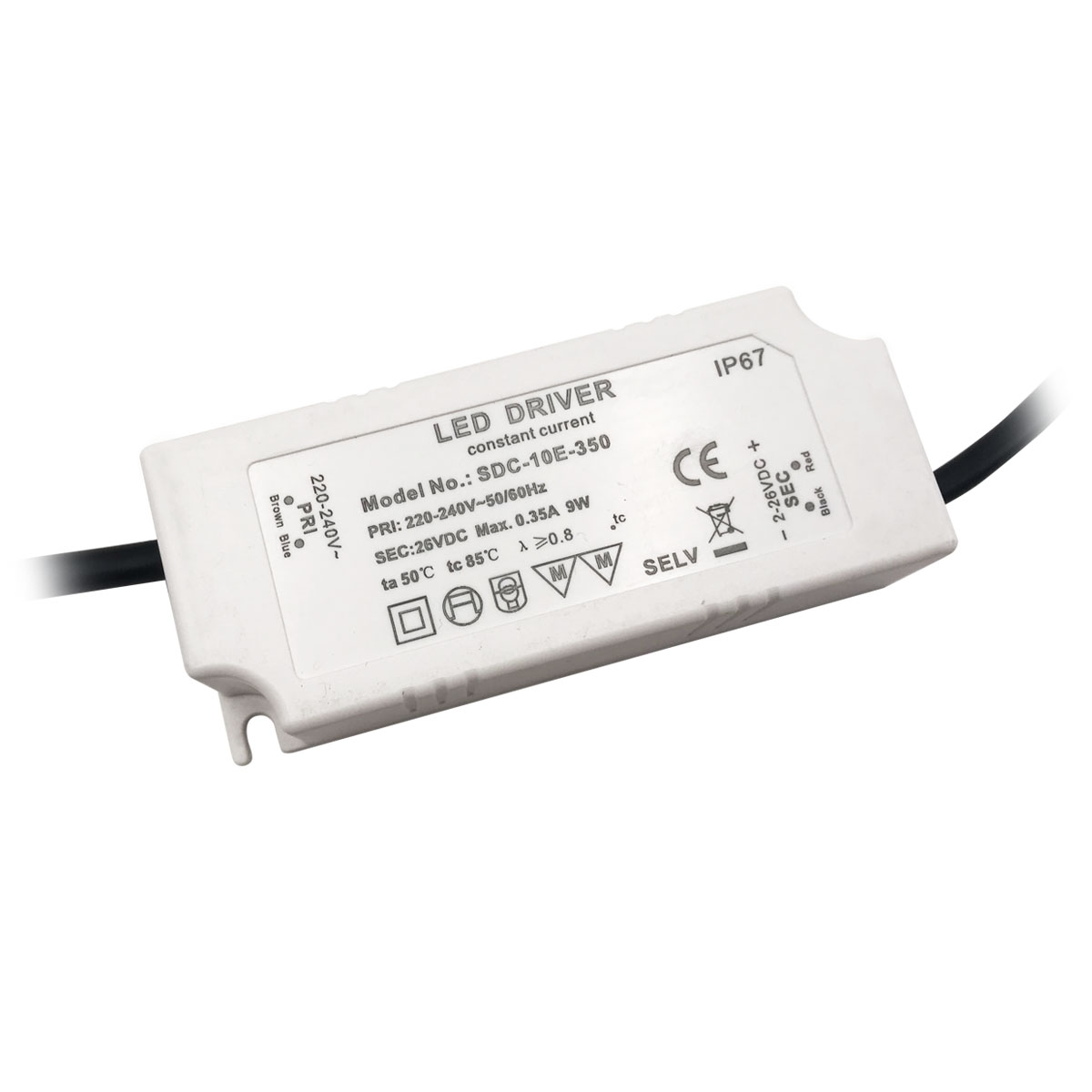

	SDC-10E-350	100-240V	1-10W	350 mA	3-26V	974026

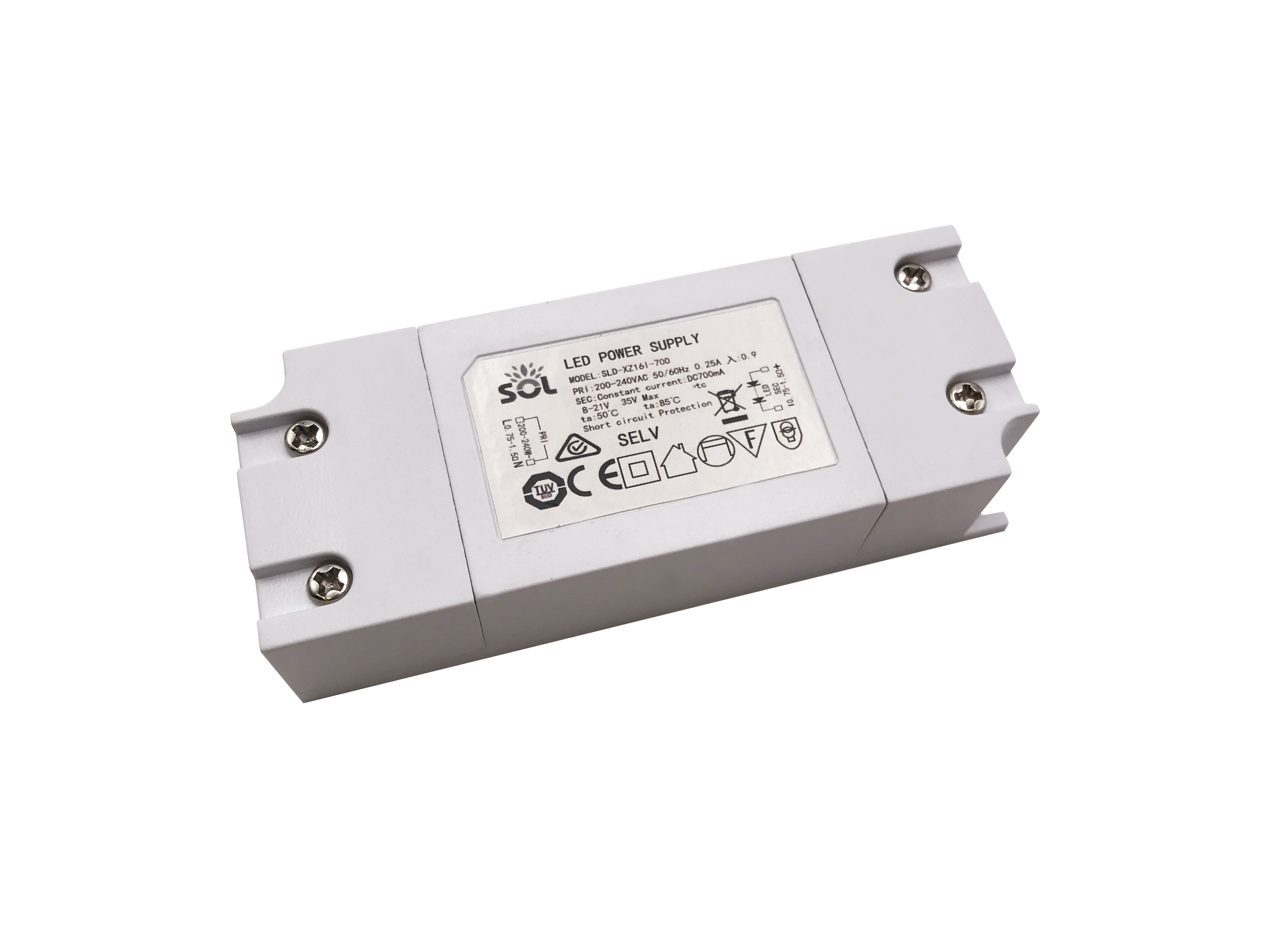

	SLD-XZ161-700	100-277V	16W	700mA	8-24V	973822

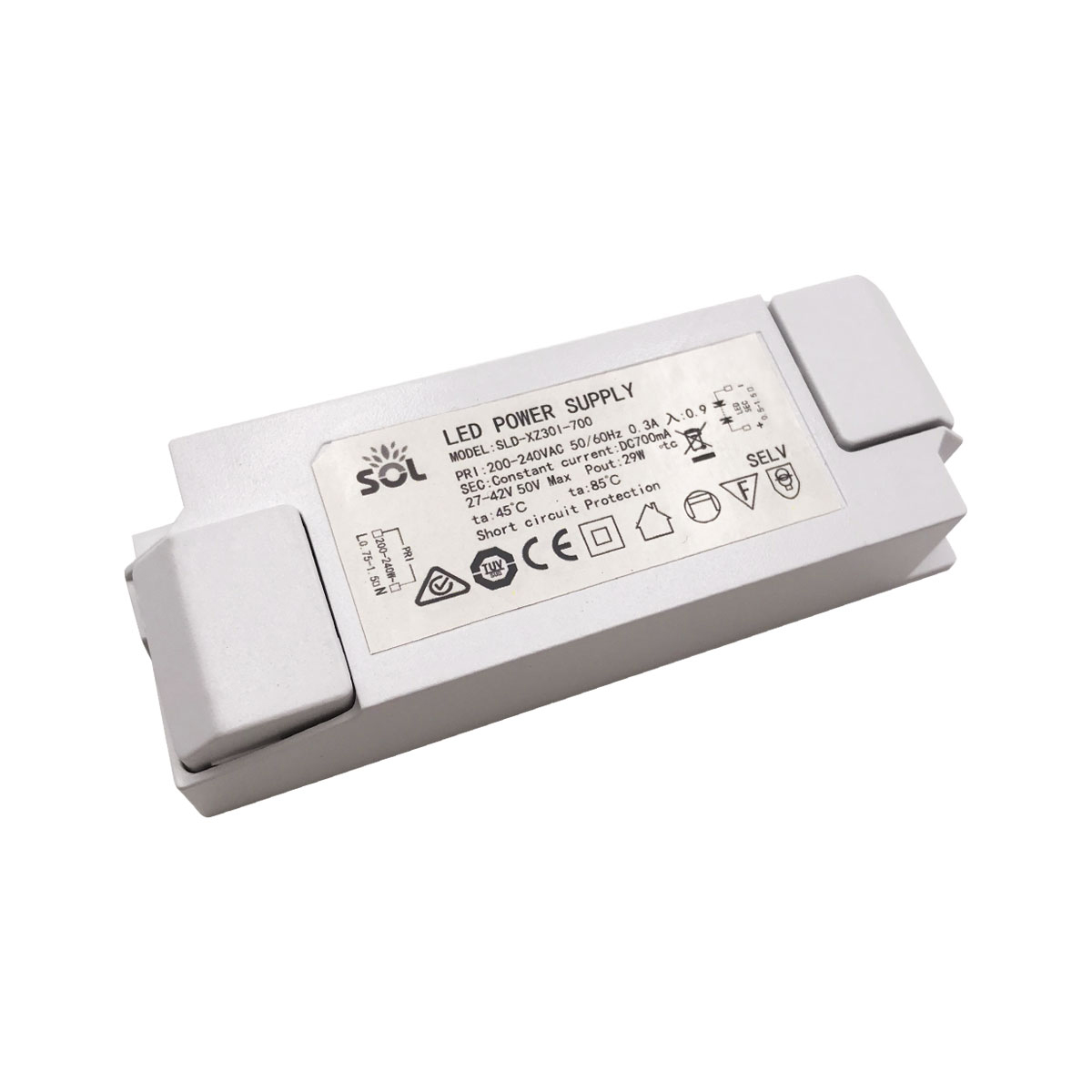

	SLD-XZ301-700	220-240V	30W	700mA	27-42V	113*40.25

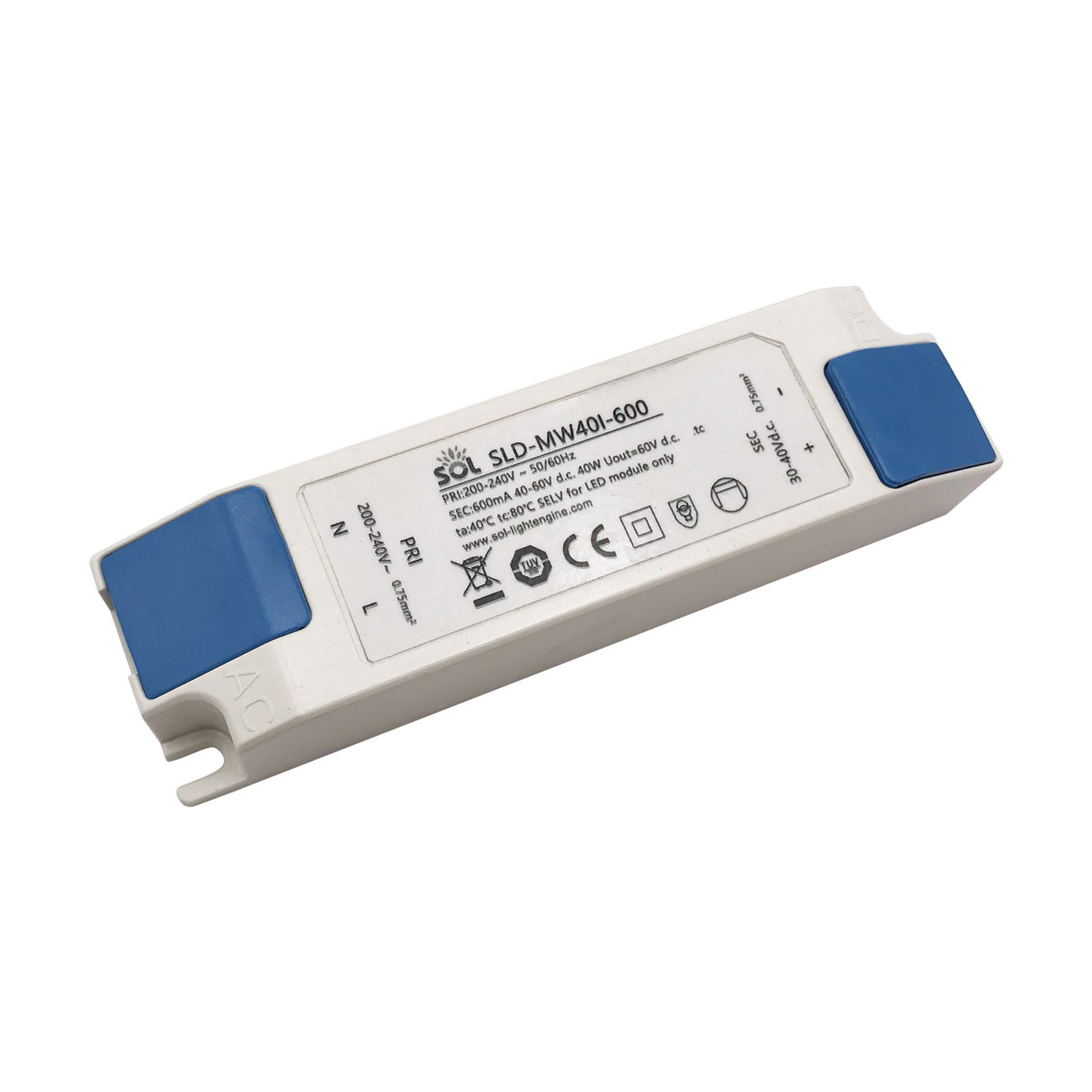

	SLD-MW401-600	220-240V	40W	600mA	40-60V	1383629

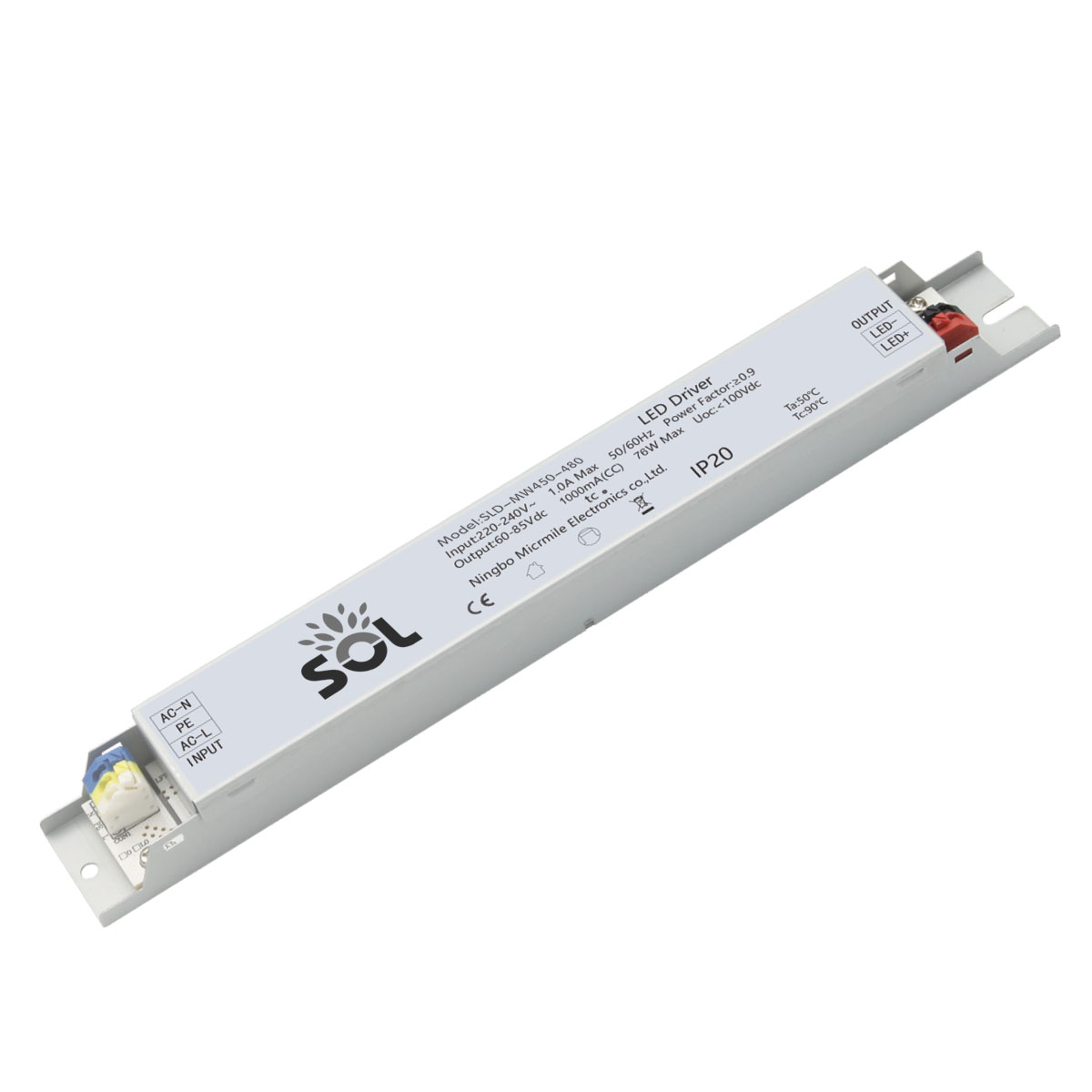

	SLD-MW450-480	220-240V	41W	450mA	DC60-85	88%
	SLD-MW600-690	220-240V	58W	690mA	DC60-85	88%
