Product instruction:
LTECH is an important partner of SOL, They focus on the controller of lighting and display, DMX system works well with our module, make your dream of smart lighting comes true.
Specification
| Image | Part No. | Technical Specs | Input Voltage | Output Signal | Control Mode | Product Size |
Data Sheet |
|

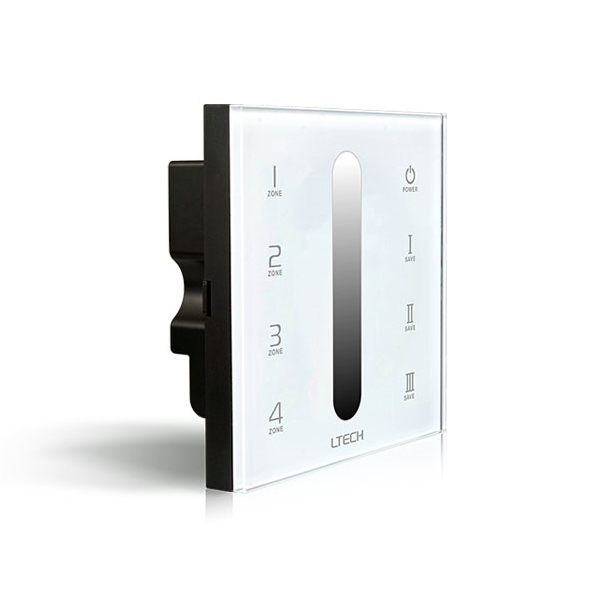

DX5 | Dimming Touch Panel | 100-240V AC | RF 2.4GHz, DMX512 | 4 Zones Control | L86*W86*H36 |
|
|

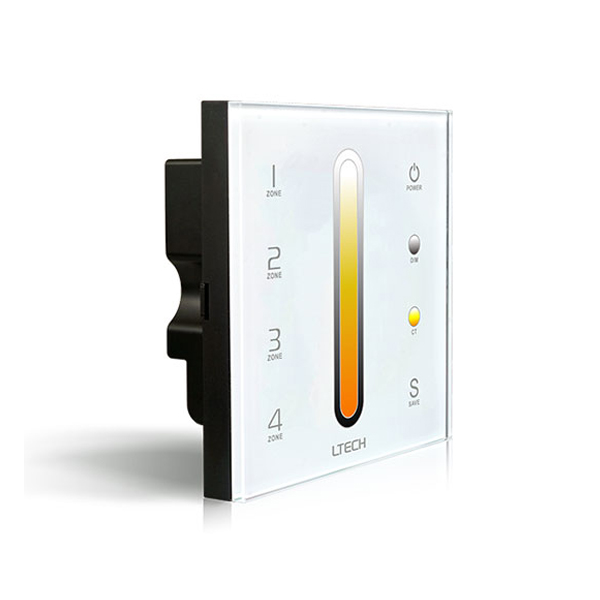

DX6 | Color Temperature Touch Panel | 100-240V AC | RF 2.4GHz, DMX512 | 4 Zones Control | L86*W86*H36 |
|
|
DX7 | Color Temperature Touch Panel | 100-240V AC | RF 2.4GHz, DMX512 | 4 Zones Control | L86*W86*H36 |
|
|

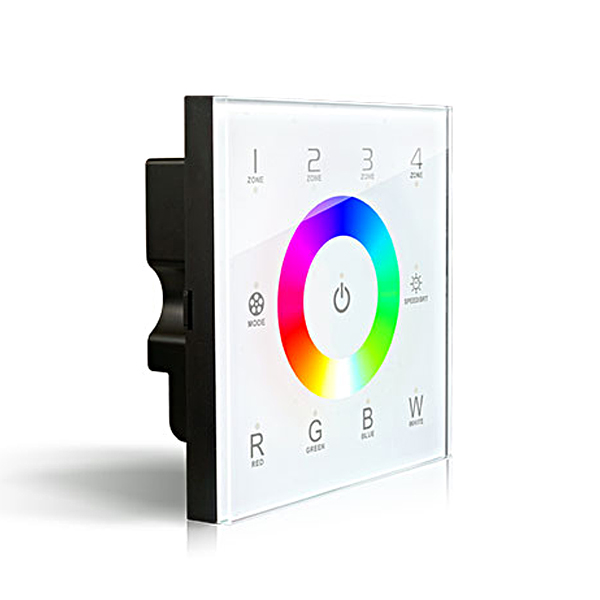

DX8 | RGBW Touch Panel | 100-240V AC | RF 2.4GHz, DMX512 | 4 Zones Control | L86*W86*H36 |
|
|

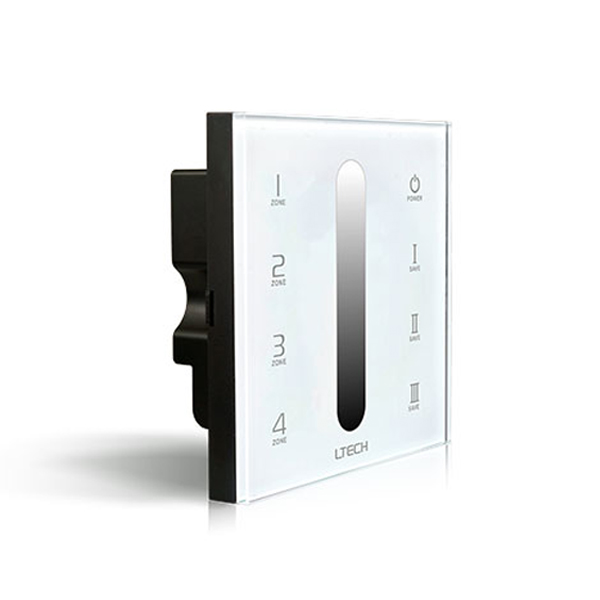

D5 | Dimming Touch Panel | 12-24V DC | DMX512 | 4 Zones Control | L86*W86*H36 |
|
|

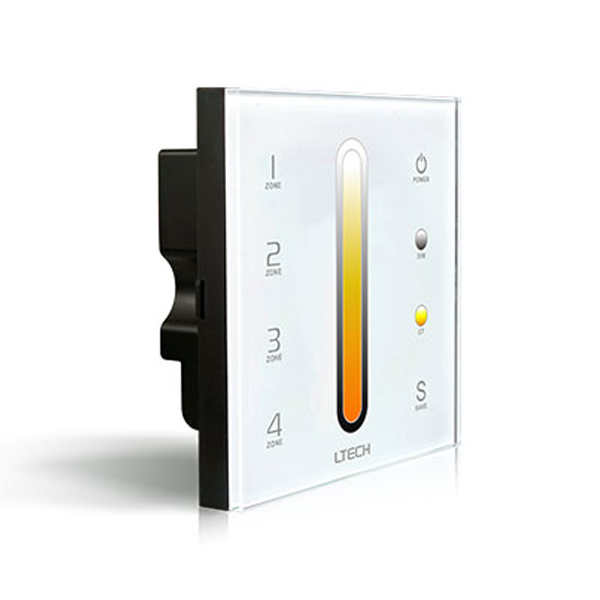

D6 | Color Temperature Touch Panel | 12-24V DC | DMX512 | 4 Zones Control | L86*W86*H36 |
|
|
D7 | Color Temperature Touch Panel | 12-24V DC | DMX512 | 4 Zones Control | L86*W86*H36 |
|
|

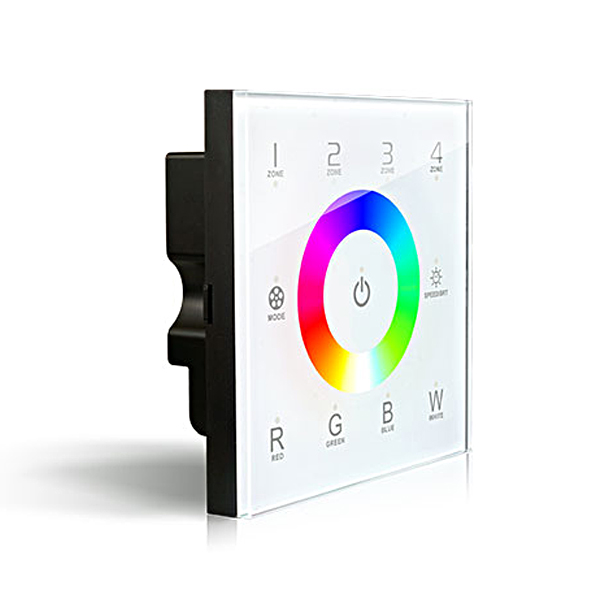

D8 | RGBW Touch Panel | 12-24V DC | DMX512 | 4 Zones Control | L86*W86*H36 |
|
| Image | Part No. | Technical Specs | Input Voltage | Max Current Load | Max Output Power | Changing Mode | Product Size |
Data Sheet |
|

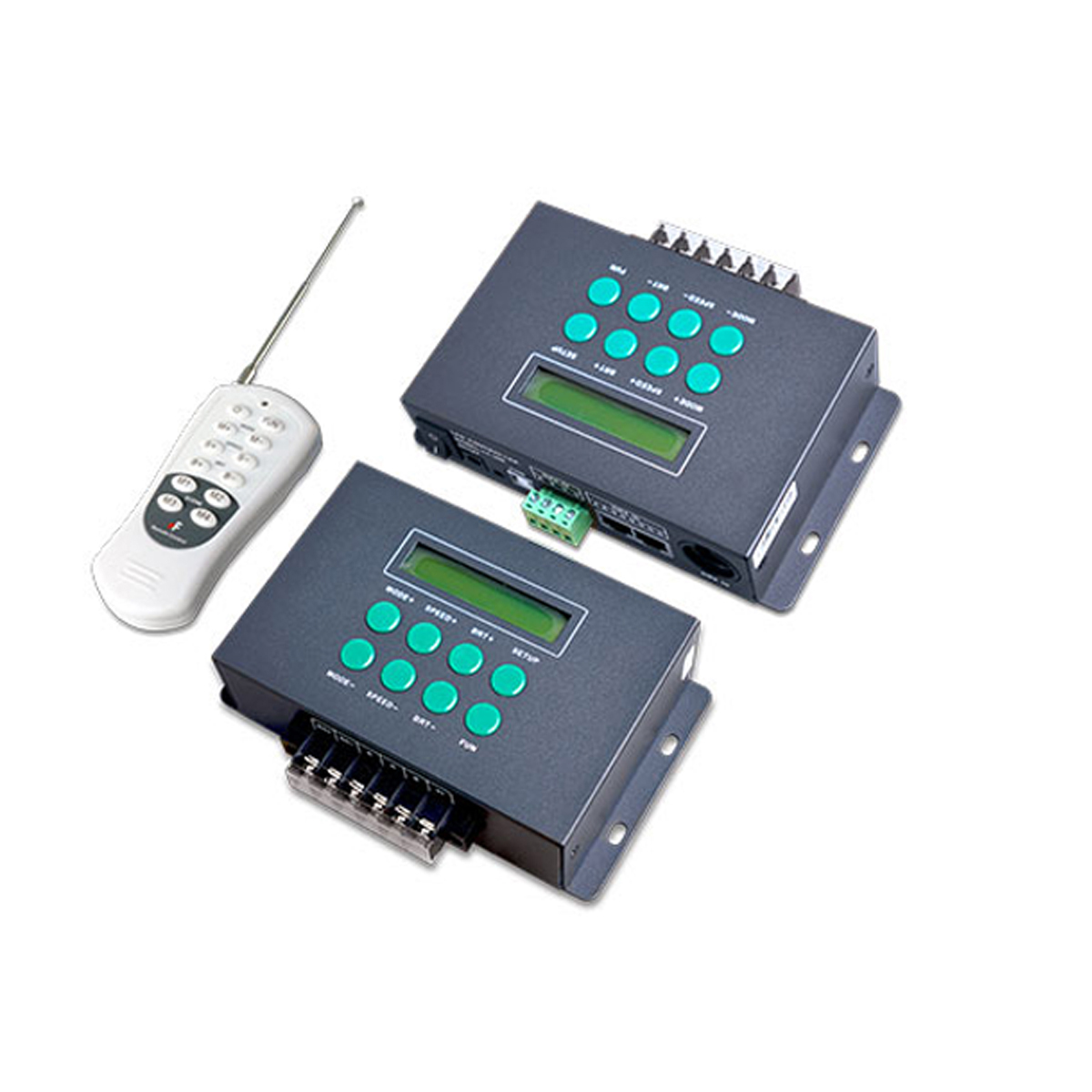

LT-300 | LED RGB/DMX/ RDM Controller | 12-24V DC | 8A×3CH | 88W/576W (12V/24V) | 39 Modes | L163*W108*H40 |
|
| Image | Part No. | Technical Specs | Input Voltage | Power consumption | Connection mode | Transmission signal | Product Size |
Data Sheet |
|

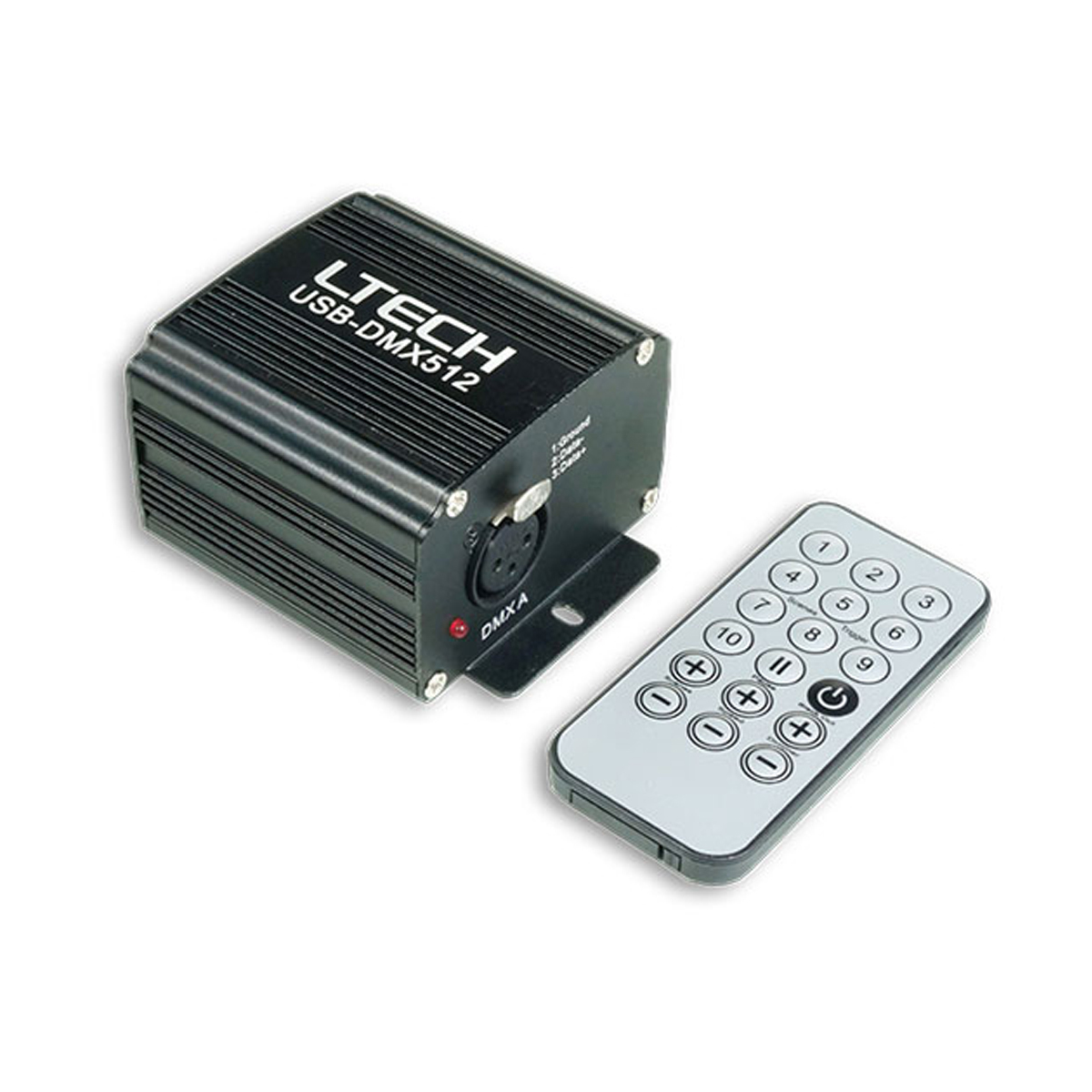

LT512 | USBDMX512& 1024 CHANNELS | 5V DC | ＜2W | MiNi USB | DMX512 | L88*W70*H47 |
|
| Image | Part No. | Technical Specs | Working voltage | Output signal channels | Off-line storage media | SD card capability | Product Size | Data Sheet |
|

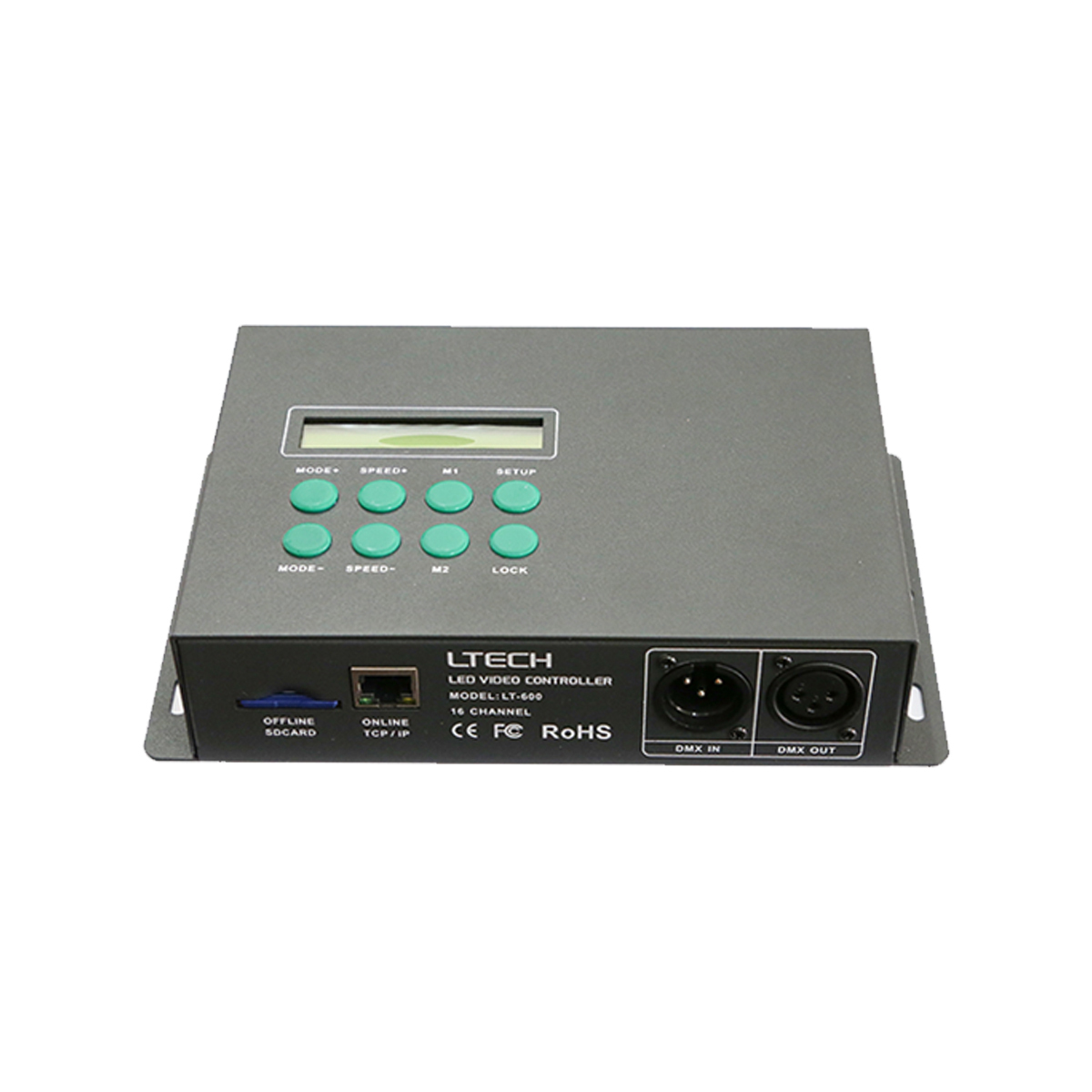

LT-600 | LED Lighting Control System | 12V DC | 16 channels | SD memory card | Max. 2GB | L203*W125*H47 |
|
| Image | Part No. | Technical Specs | Working voltage | Power consumption | Output Signal | Lighting Mode | Product Size | Data Sheet |
|

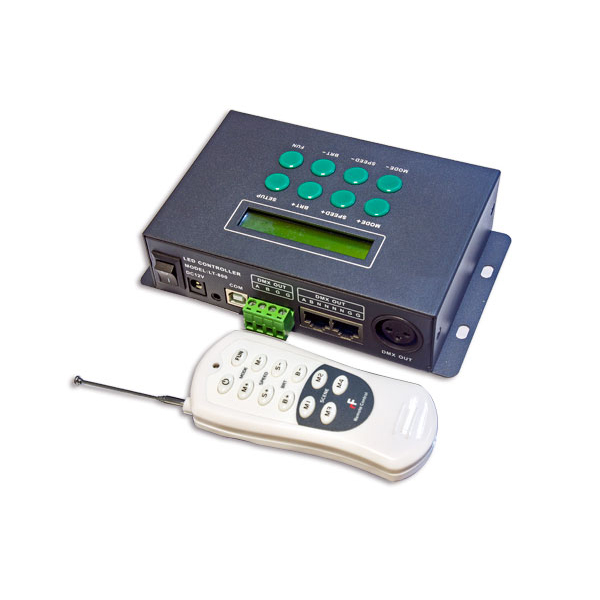

LT-800 | DMX Controller | 12V DC | ＜2W | DMX512/1990 | 580 Modes | L163*W128*H40 |
|
| Image | Part No. |
Technical
Specs |
Input Voltage | Current Load | Output Power | Dimming Range | Product Size | Data Sheet |
|

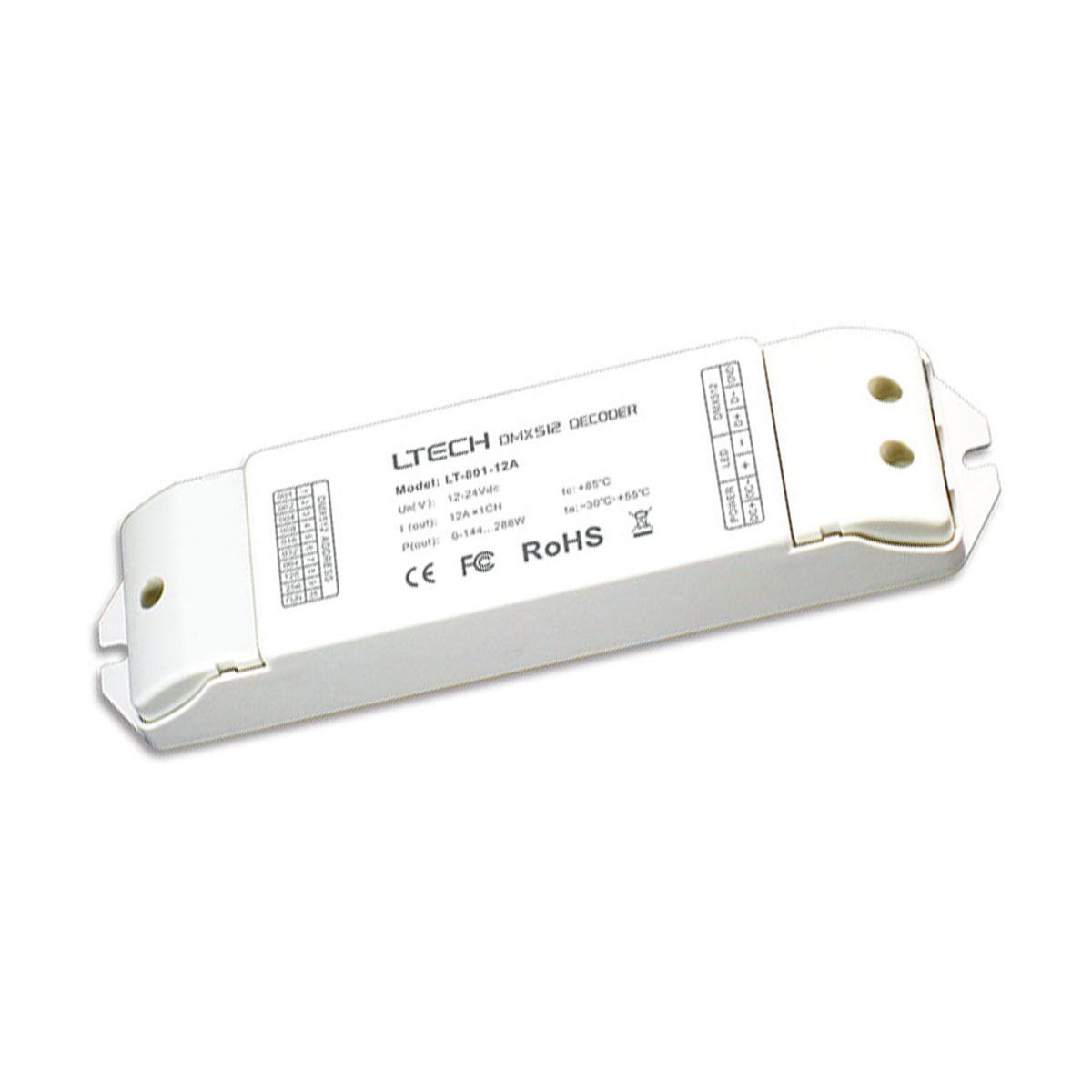

LT-801-12A | DMX Controller | 5-24V DC | 12A×1CH Max 12A | 0-144W… 288W | 0-100% | L175*W44*H30 |
|
|

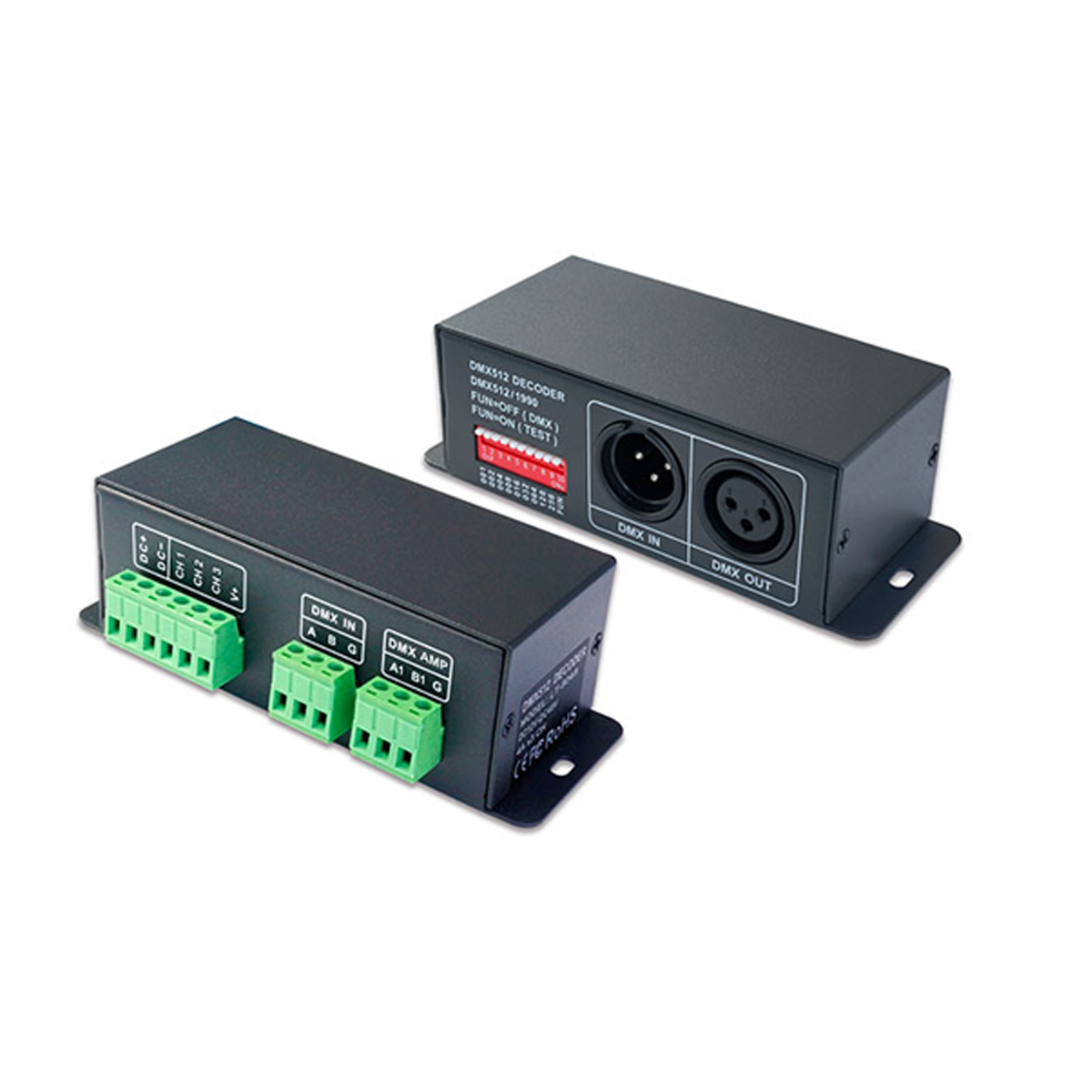

LT-8048 | DMX512, RDM | 12-48V DC | 4A×3CH 12A | MAX.144W/ 432W/576W | 0-100% | L125*W52*H40 |
|
Application
Horticulture
Uitraviolet
Marine light
