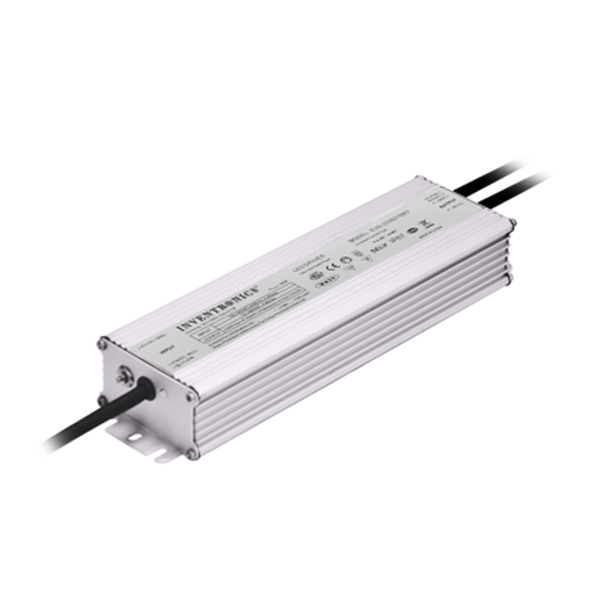

INVENTRONICE Driver

Product instruction:

INVENTRONICS is good partner of SOL, established in china and famous in the world, high efficiency and economic cost drivers make your luminaires competitive on the market. Dimmable and adjustable power supply is friendly for smart lighting system.

Features

High Efficiency
Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC) with Dip-switch
Input Surge Protection: 6 kV line-line, 10 kV line-earth
All-Around Protection: OVP, SCP, OTP
Waterproof (IP67)
SELV Output
Suitable for Independent Use

Specification

LED Driver Series	Image	Part No.	Current Range	Power Level	Input Voltage	Lifetime	Dimming	Mode	Data Sheet

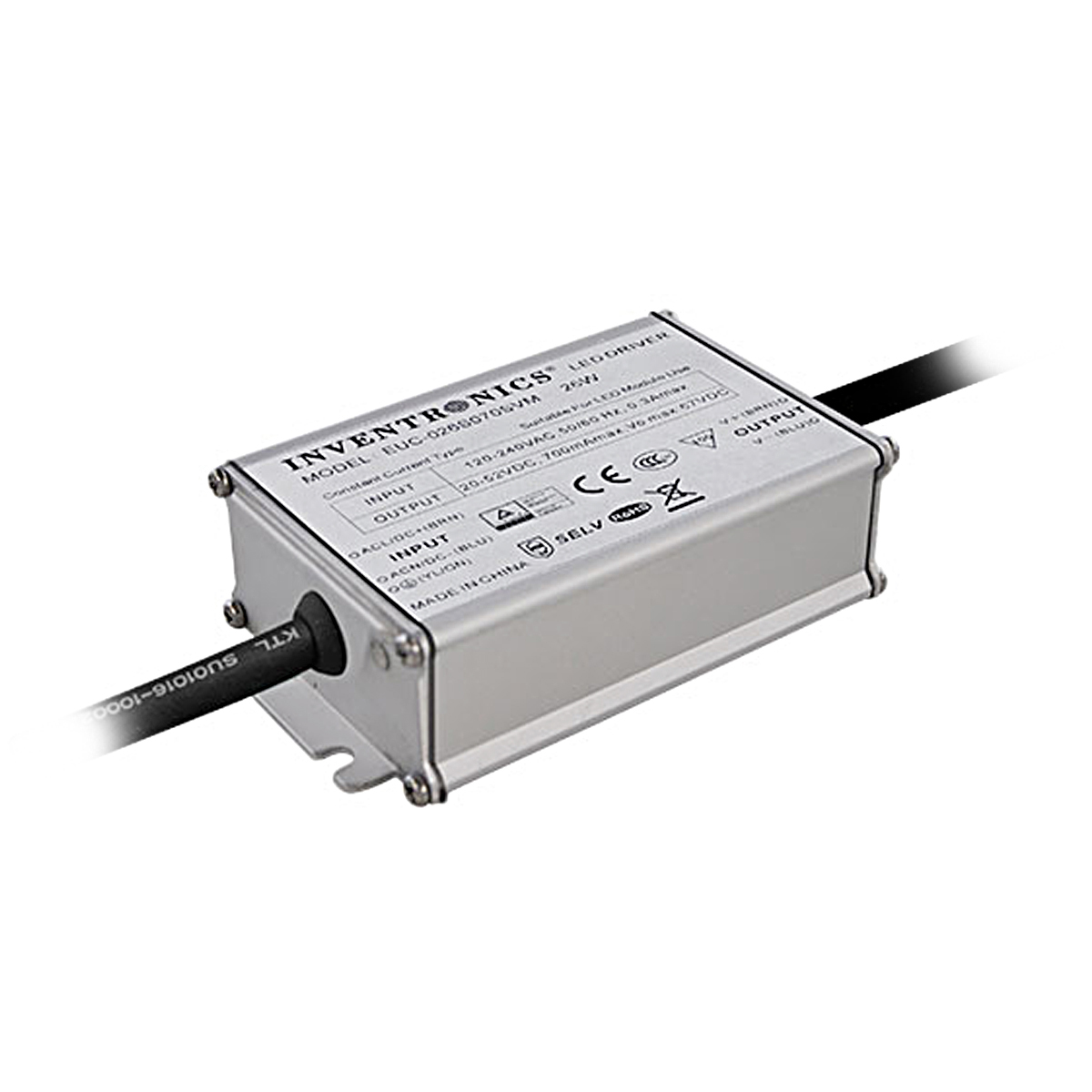

EUC-M Series		DS-EUC-026SXXXSVM	0.35-0.7A	26W	90-305V	84,000 Hours	N/A	Constant Current

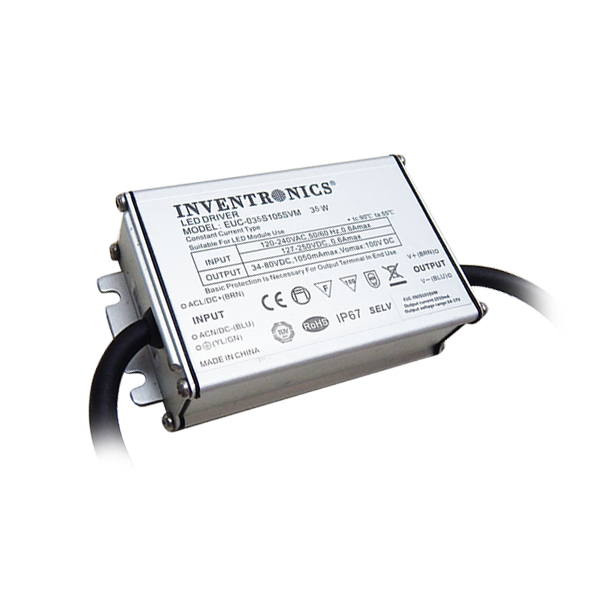

		DS-EUC-035SXXXSVM	0.5-1.05A	35W	90-305V	80,000 Hours

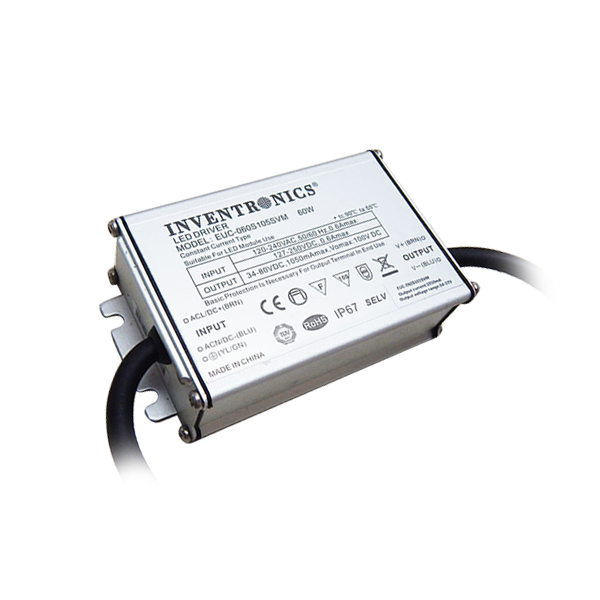

		DS-EUC-060SXXXSV	0.5-1.8 A	60W	90-305V	85,800 Hours

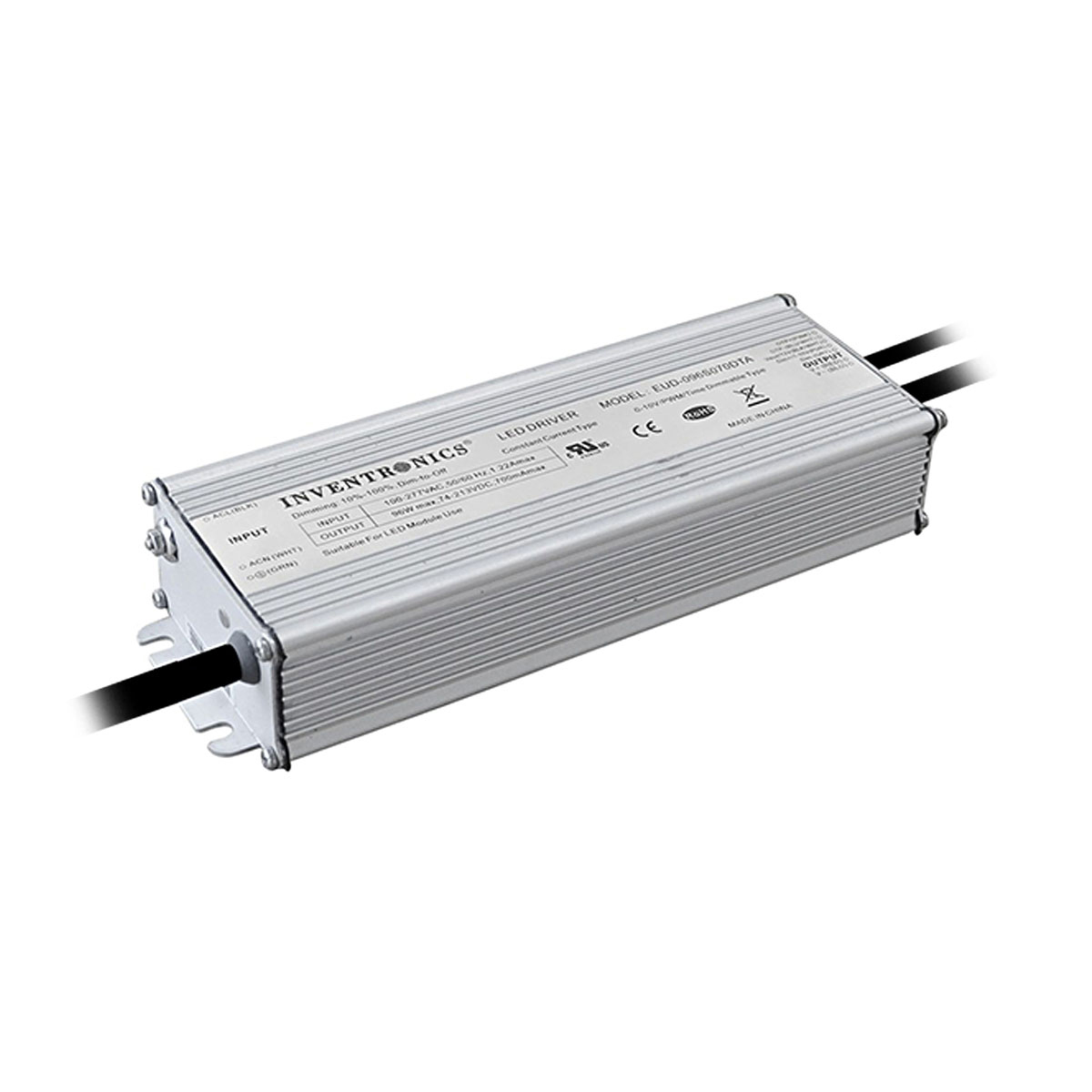

EUK Series		DS-EUK-075SxxxDV(TV)	0.45-2.8A	75W	90-305V/127-250V	84,000 Hours	0 - 10V, 10V PWM	Program mable
		DS-EUK-096SXXXDV(TV)	0.7-3.5A	96W	90-305V/ 127-250V	100,000 Hours
		DS-EUK-150SXXXDV(TV)	0.7-5.6A	150W	90-305V/ 127-250V	81,000 Hours
		DS-EUK-200XXXDV(TV)	0.7-5.6A	200W	90-305V/ 127-250V	85,000 Hours
		DS-EUK-240SXXXDV(TV)	0.7-6.7A	240W	90-305V/ 127-250V	84,000 Hours

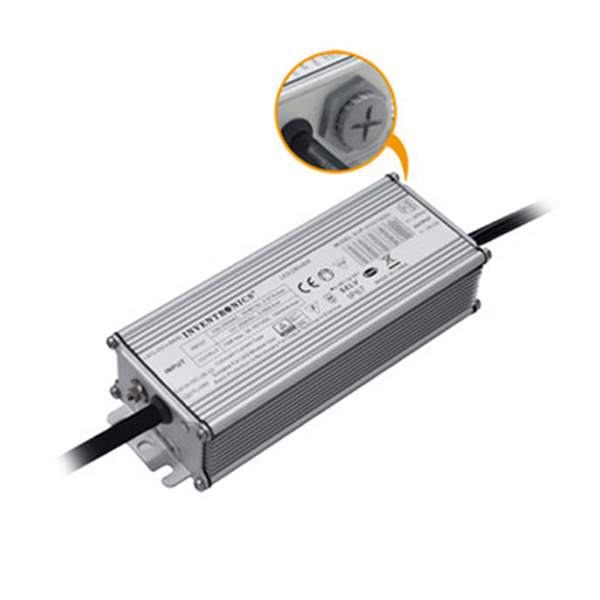

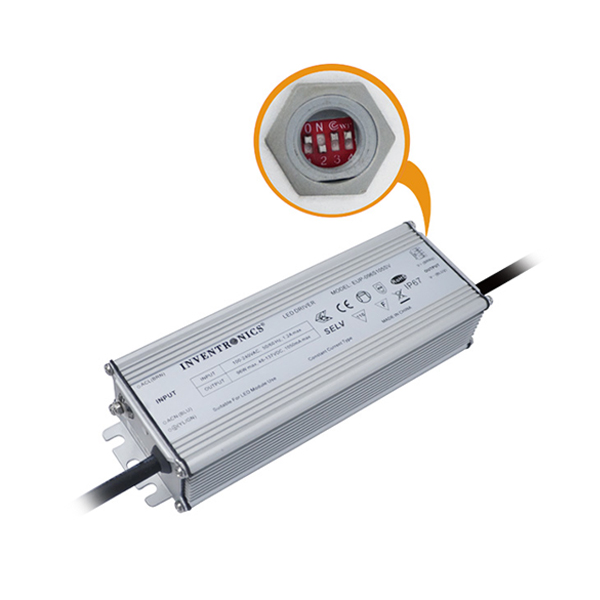

EUP Series		DS-EUP-075SXXXSV	0.45-2.8A	75W	90-305V/ 127-250V	79,000 Hours	N/A	Adjustable Output Current With Dip-switch
		DS-EUP-096SXXXSV	0.45-3.5A	96W	90-305V/ 127-250V	77,000 Hours
		DS-EUP-150SXXXSV	0.45-5.6A	150W	90-305V/ 127-250V	114,000 Hours
		DS-EUP-200SXXXSV	0.7-5.6A	200W	90-305V/ 127-250V	85,000 Hours
		DS-EUP-240SXXXSV	0.7-6.7A	240W	90-305V/ 127-250V	84,000 Hours

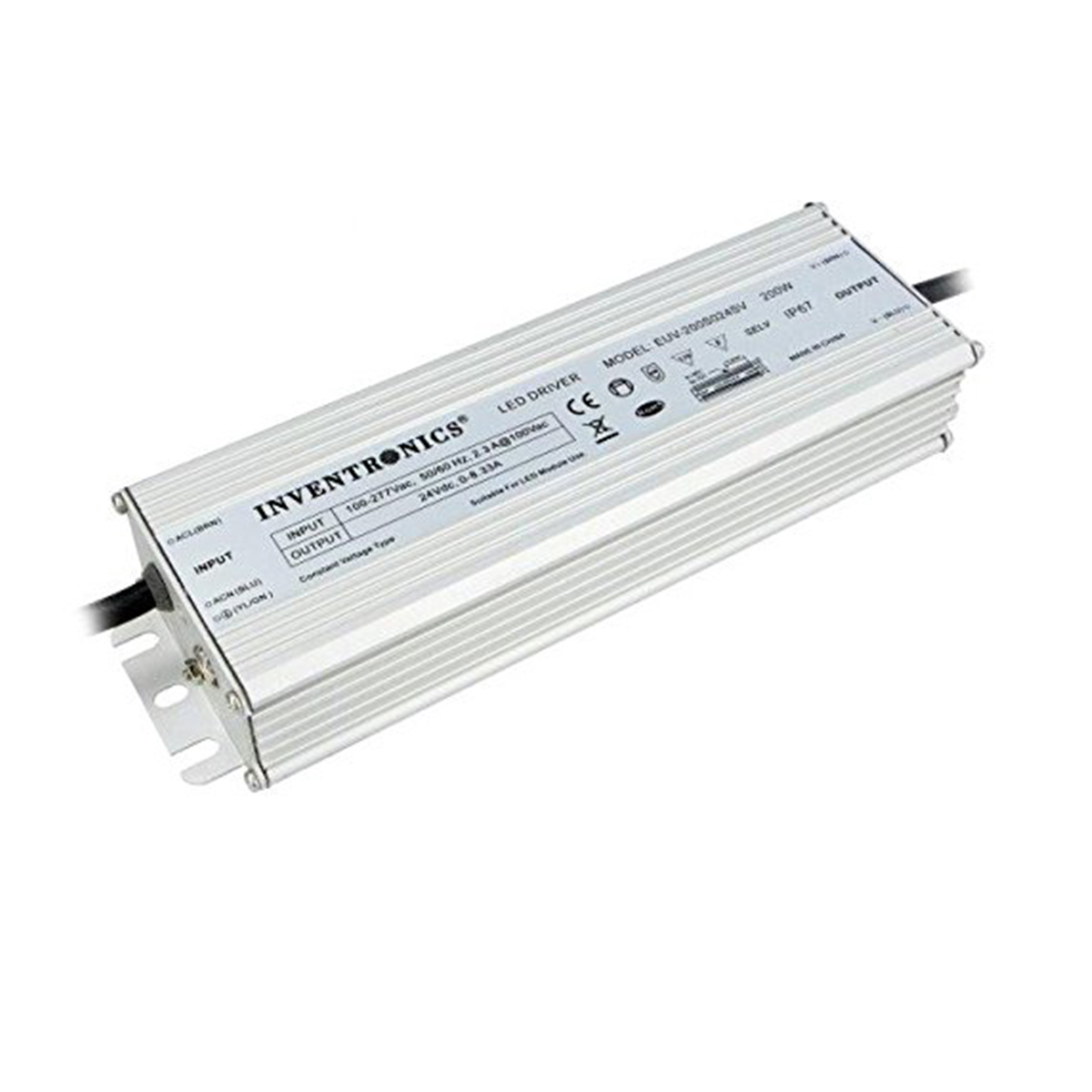

EUD Series		DS-EUD-075SXXXDV	0.45-3.6A	75W	90-305V/ 127-250V	111,000 Hours	0 - 10V, PWM Traditional Timer	Program mable
		DS-EUD-096SXXXDV	0.45-3.6A	96W	90-305V/ 127-250V	111,000 Hours
		DS-EUD-150SXXXDV	0.65-5.2A	150W	90-305V/ 127-250V	120,000 Hours
		DS-EUD-200SXXXDV	0.7-4.9A	200W	90-305V/ 127-250V	108,000 Hours
		DS-EUD-240SXXXDV	0.7-6.6A	240W	90-305V/ 127-250V	97,000 Hours

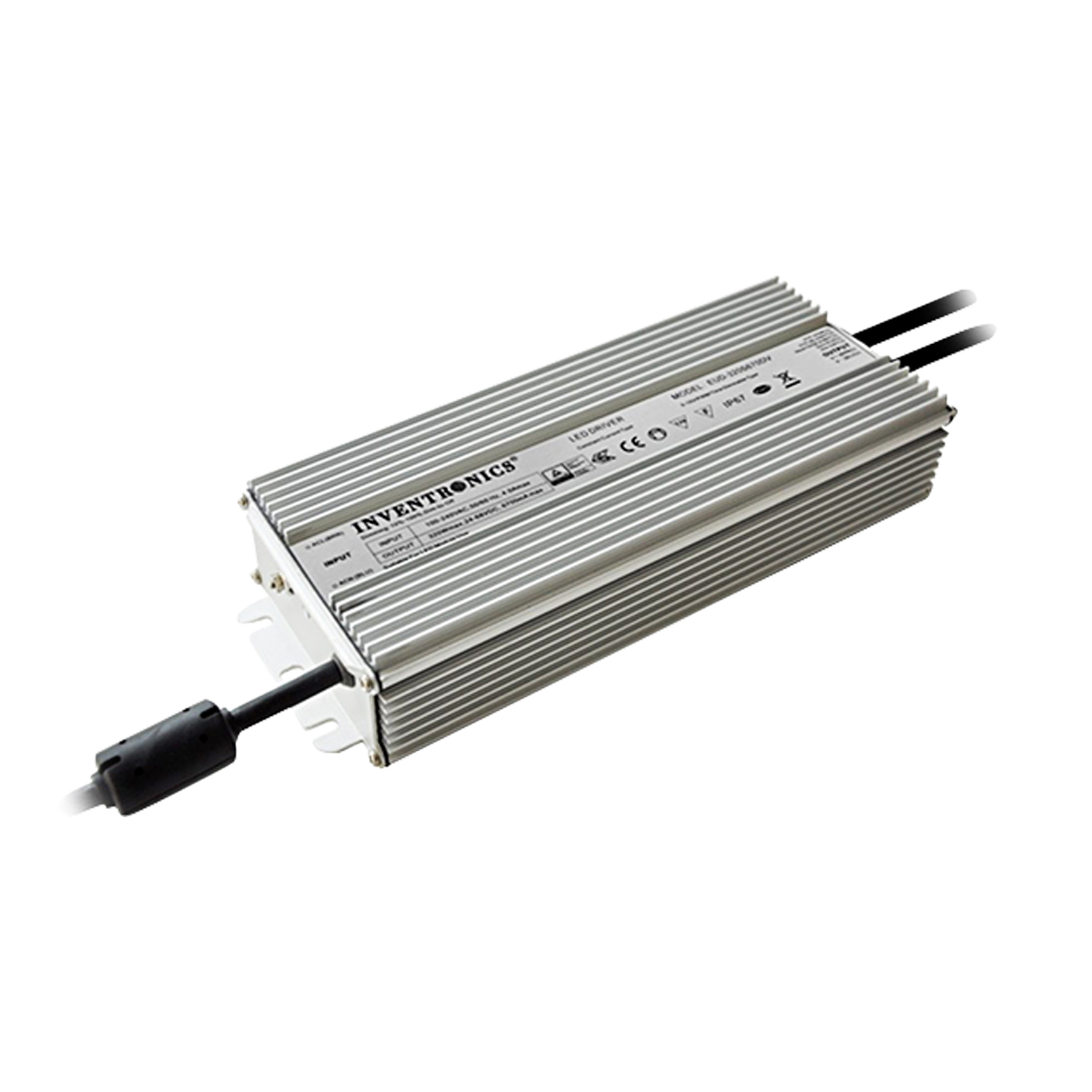

		DS-EUD-320SXXXDV	1.05-6.7A	320W	90-305V/ 127-250V	97,000 Hours
		DS-EUD-600SXXXDV	1.1-12.5A	600W	90-305V/ 127-250V	90,000 Hours
