SURGE PROTECTOR

Product instruction:

SOL surge protector designed specifically for outdoor and commercial led lighting applications. Thermal disconnect function provides additional protection from catastrophic failures and fire hazards.

Features

Suitabile for use in luminaire with Class I or Class II installations
Protection mode: L-N、L-P、N-PE
Built-in thermal,easy maintenance
Excellent impact resistance,low voltage limit
Built-in LED indication,saves maintenance time by identifying replacement need
IP67-Dust-tight and water resistant

Specification

Image	Part No.	Operating Voltage	Rated load current	Max.continuous voltage	Nominal discharge voltage	Max. discharging voltage	Connection mode	Data Sheet

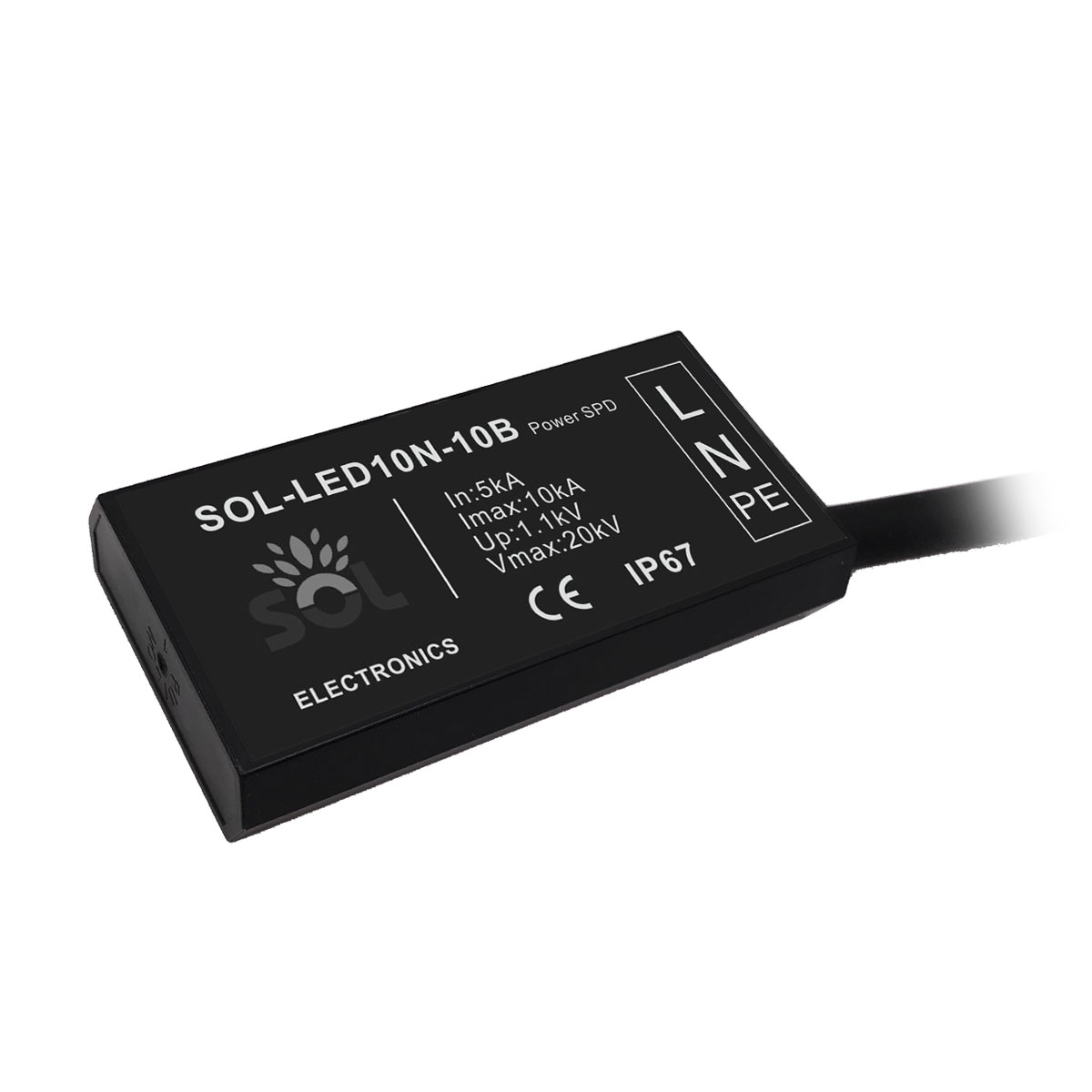

	SOL-LED10N-10B	110-277V	-	390V	10kV	20kV	Paraller connetion

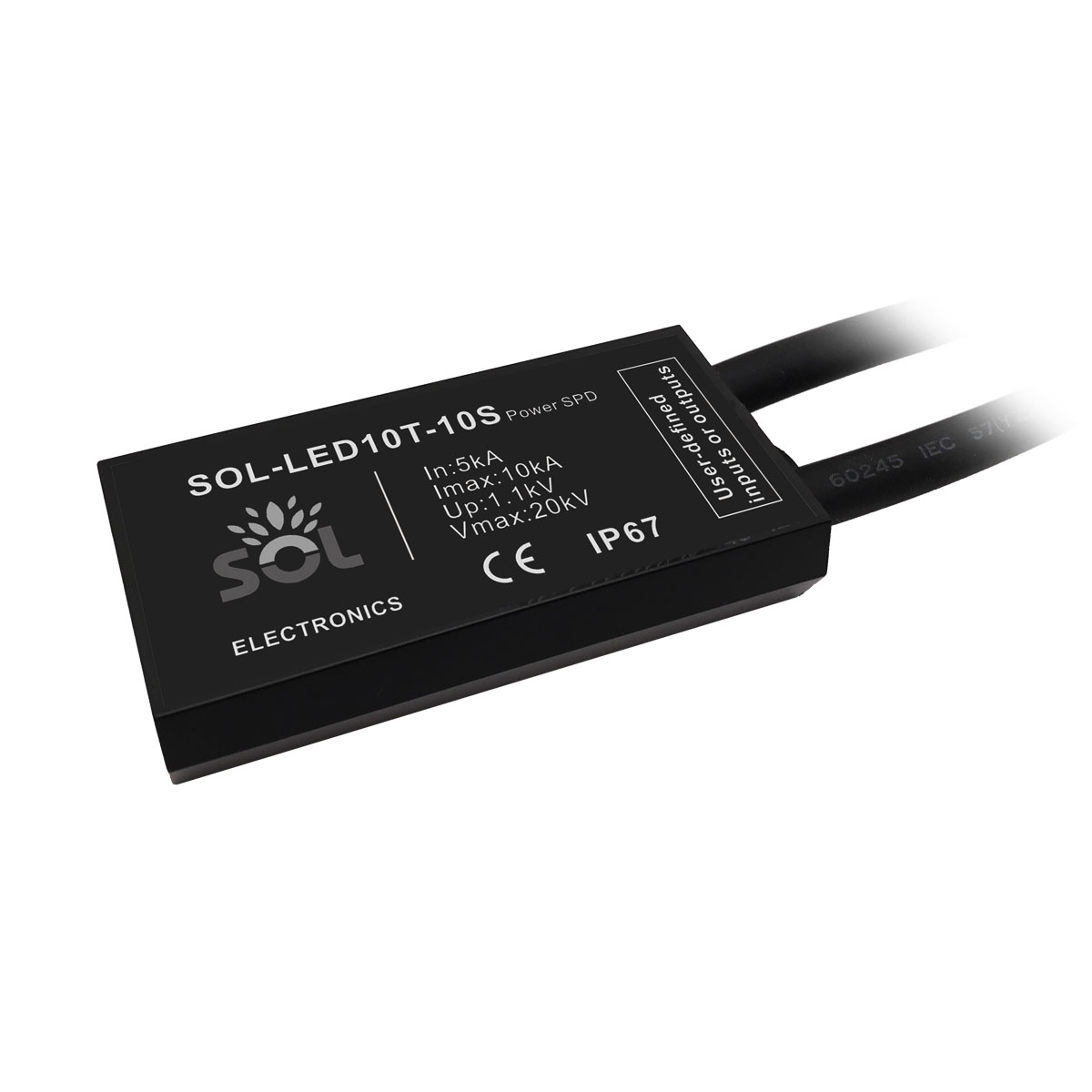

	SOL-LED10T-10S	110-277V	≤10A	390V	10kV	20kV	Series connetion

Image	Part No.	Operating voltage	Rated load current	Open Circuit voltage	Nominal discharge current	Max. discharging current	Connection mode	Data Sheet

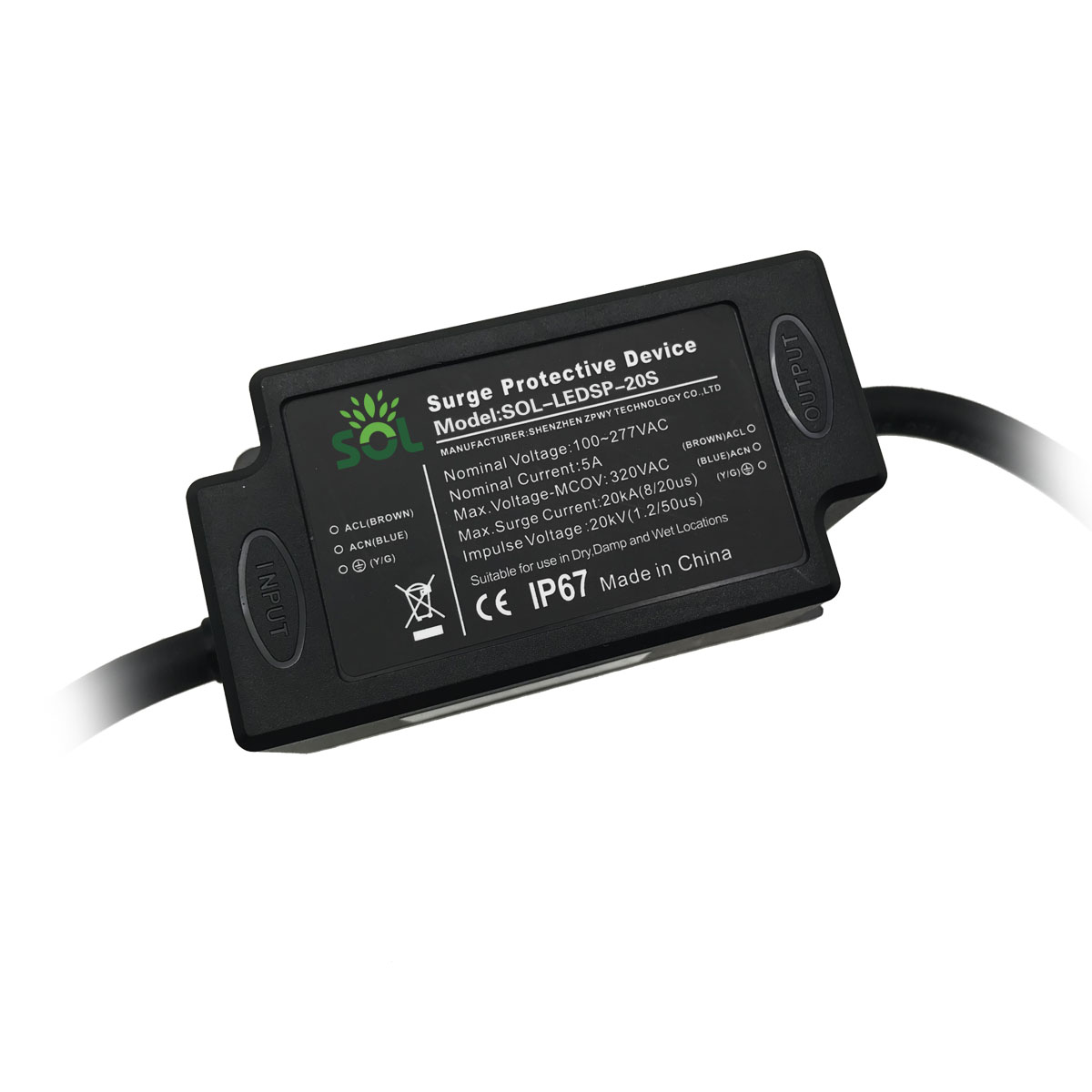

	SOL-LEDSP-20S	100-277V	5A	20kV	10kA	20kA	Series connetion

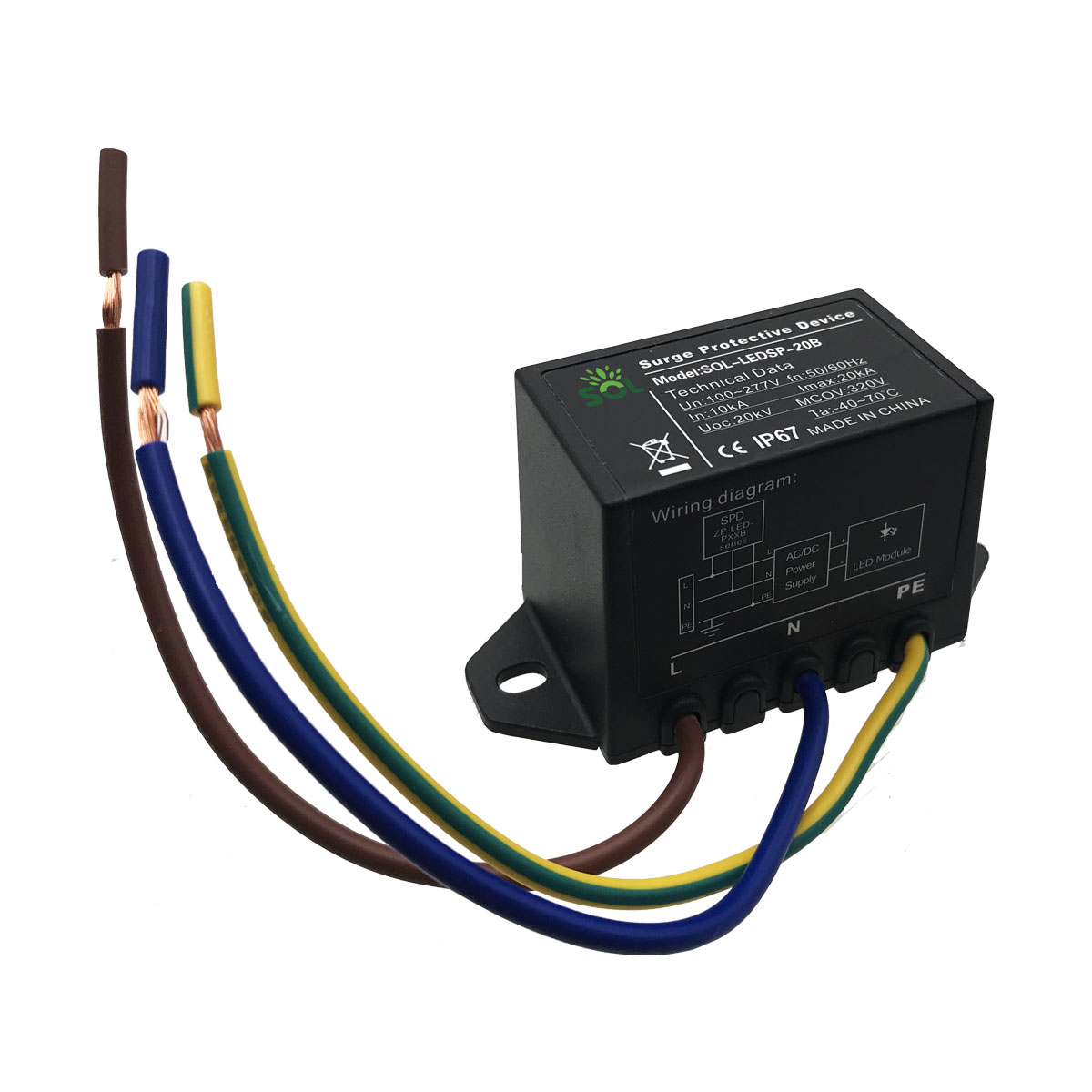

	SOL-LEDSP-20B	100-277V	5A	20kV	10kA	20kA	Series connetion

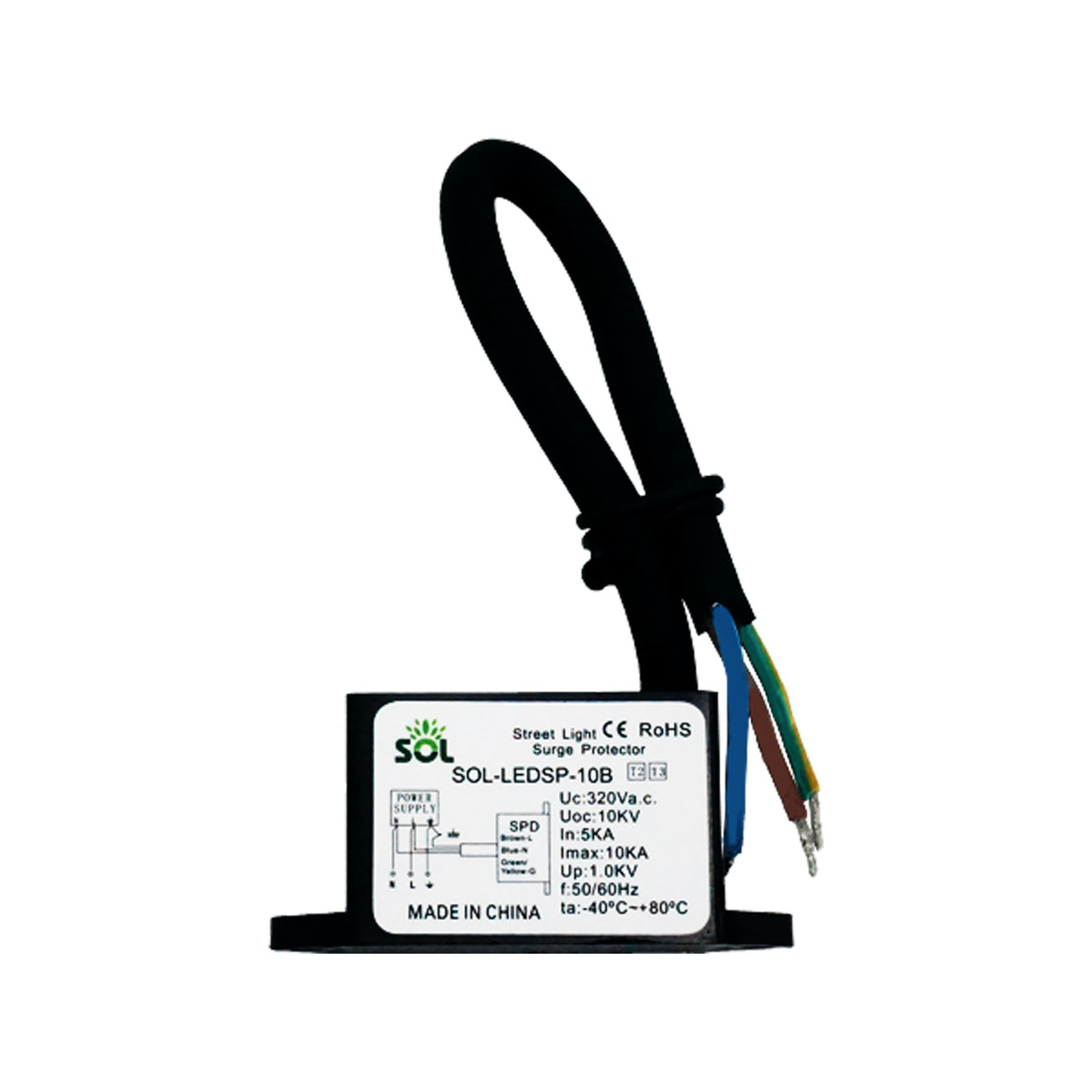

	SOL-LEDSP-10B	220-240V	-	10kV	5kA	10kA	Paraller connetion

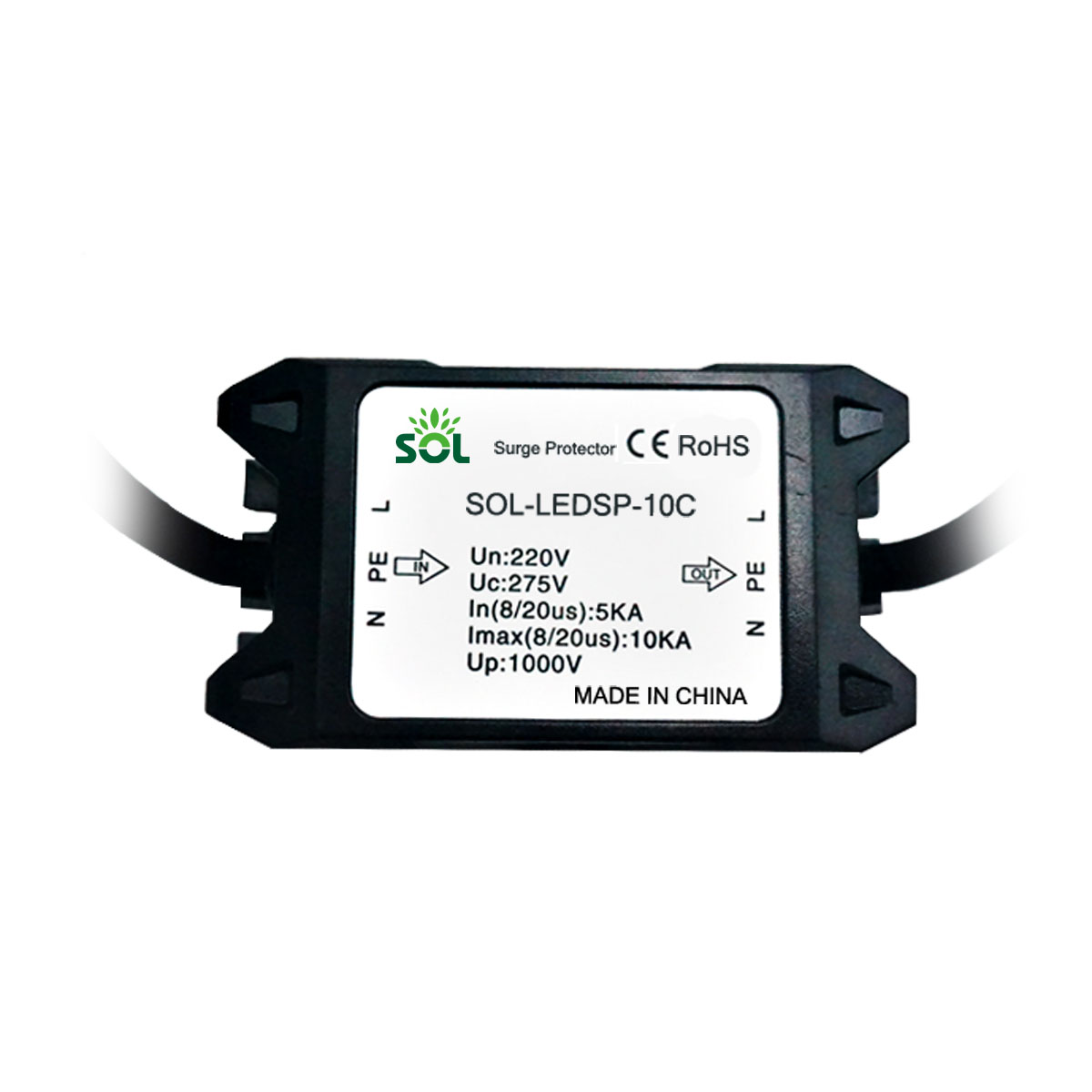

	SOL-LEDSP-10C	240V	-	10kV	5kA	10kA	Series connetion

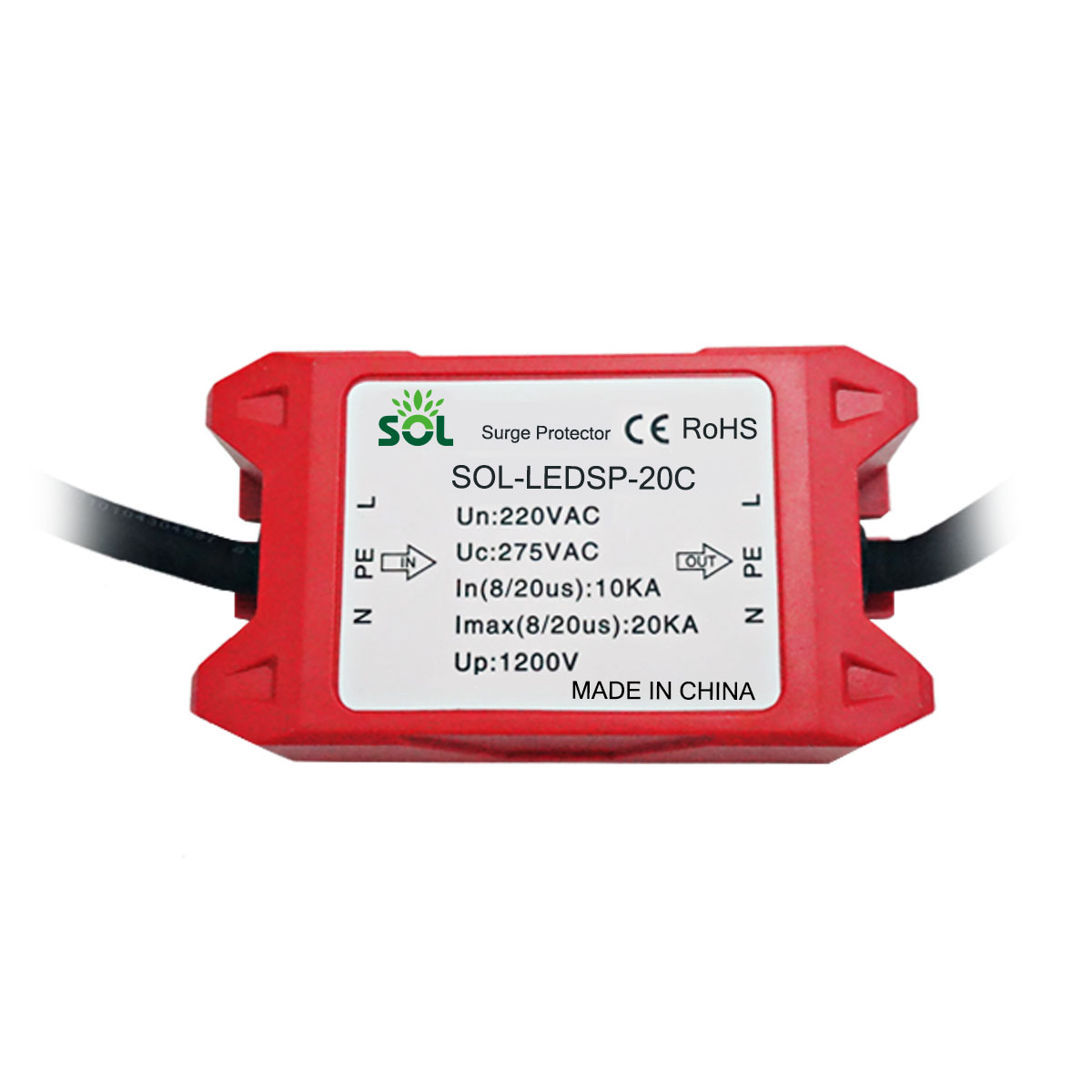

	SOL-LEDSP-20C	240V	-	20kV	10kA	20kA	Series connetion

Application

Digital signage
Flood lighting
Street lighting
Roadway lighting
Parking garage lighting
Traffic lighting
Tunnel lighting
Wall wash lighting
AC-LED lighting
