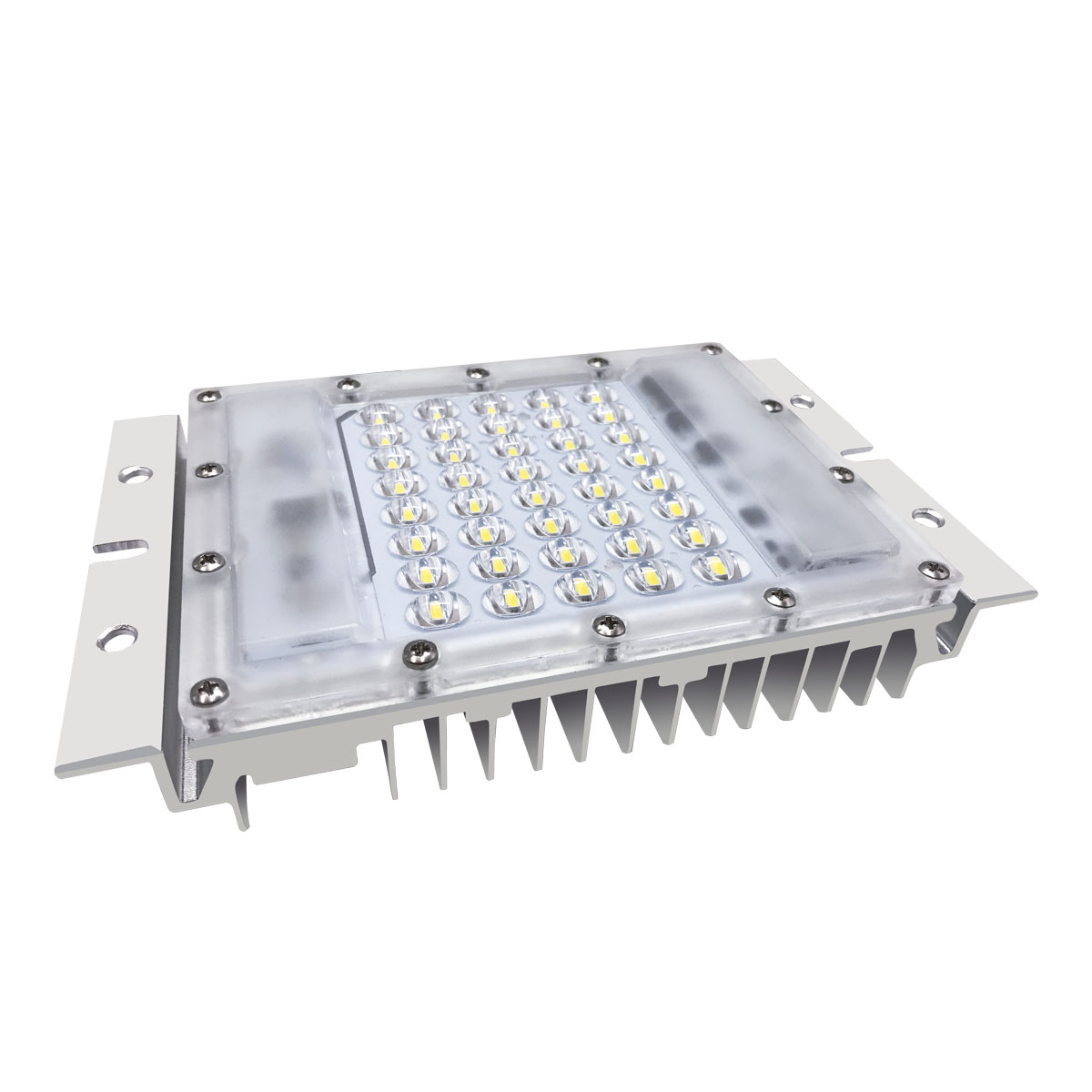

Square LED Retrofit Kit

inquiry

Features

2700-6500K CCT options
20-35W power options
Input AC220V or 110V options
Up to 140lm/W
CRI>90 or >95 available in Plus
Connect to each other

Specification

Part Number CCT CRI QTY of LEDs Input Voltage Typ.Power Typ.Flux Typ.Efficacy DIM.Typ
SLRM-F035S40W-A-XX 2700/3000 >80 40 110/120 35 3150 90
SLRM-F035S40P-A-XX 4000/5000
5700/6500 		3500 100
SLRM-P035S40W-A-XX 2700/3000 >80 40 110/120 35 3850 110
SLRM-P035S40P-A-XX 4000/5000
5700/6500 		4200 120
SLRM-P035S40W-A-XX-D 2700/3000 >80 40 110/120 35 3850 110 0-10V
SLRM-P035S40P-A-XX-D 4000/5000
5700/6500 		>80 40 110/120 35 4200 120 0-10V
Units K PCS Vac mA W lm lm/W

Application
