Product instruction:
More and more UV LED replace the mercury lamp in variety industries, Such as curing , beauty care, and sterilization for health.. We provide here from 265nm-405nm ,all different wavelength UV led .
Specification
| LED Series | Image | Part Number | Color | Radiant Power | IF (mA) | VF (V) | CRI | Data Sheet |

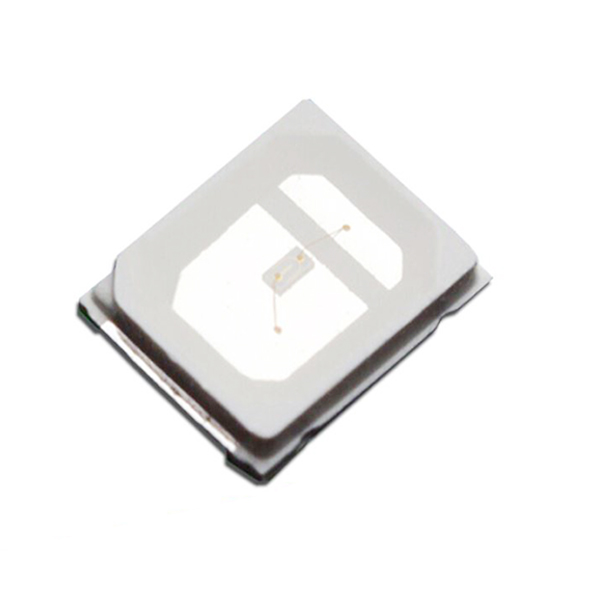

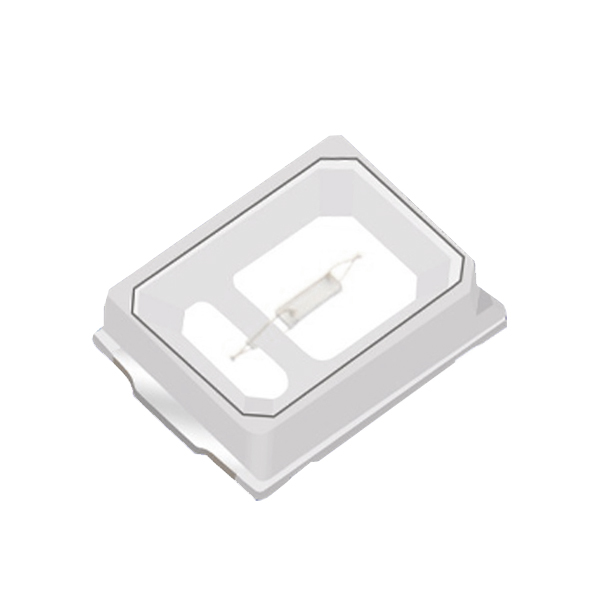

| 2835 |
|
SOL-2835UA020-01 | 365-375nm | 100mW | 60mA | 4V | >80 |
|
| SOL-2835UA020-02 | 380-390nm | 100mW | 60mA | 3.8V | >80 | |||
| SOL-2835UA020-03 | 395-410nm | 100mW | 60mA | 3.6V | >80 | |||
|
SOL-2835UA050-01 | 365-375nm | 400mW | 150mA | 4V | >80 |
|
|
| SOL-2835UA050-01 | 380-390nm | 400mW | 150mA | 3.8V | >80 | |||
| SOL-2835UA050-01 | 395-410nm | 400mW | 150mA | 3.6V | >80 | |||

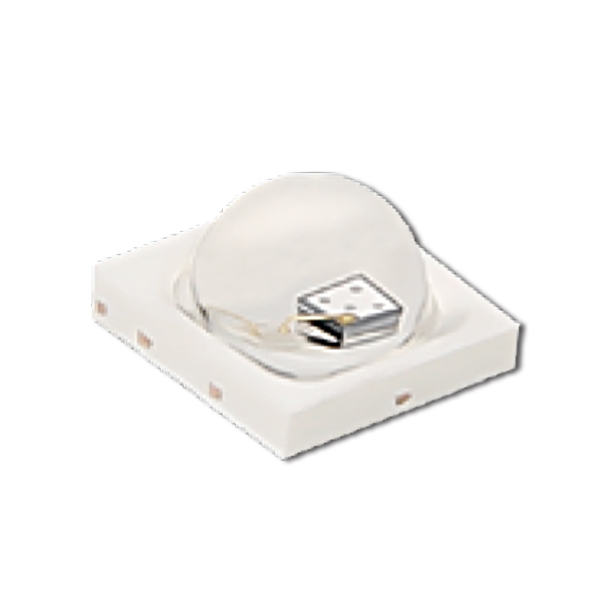

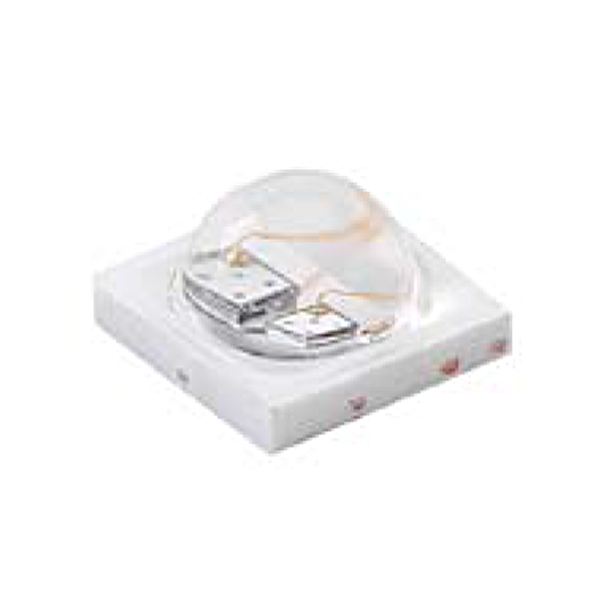

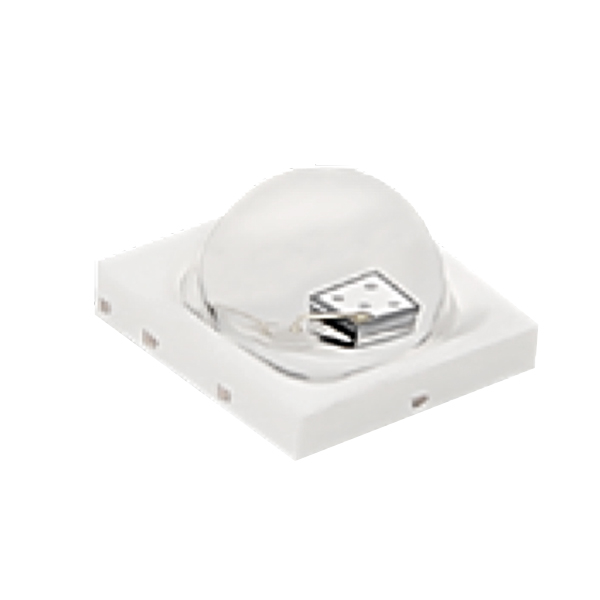

| 3030 |
|
SOL-3030UA050-01 | 365-375nm | 400mW | 150mA | 4V | >80 |
|
| SOL-3030UA100-02 | 380-390nm | 400mW | 150mA | 3.8V | >80 | |||
| SOL-3030UA050-03 | 395-410nm | 400mW | 150mA | 3.6V | >80 | |||
|
SOL-3030UA100-01 | 365-375nm | 400mW | 150mA | 4.0 V | >80 |
|
|
| SOL-3030UA100-02 | 380-390nm | 400mW | 150mA | 4.0V | >80 | |||
| SOL-3030UA100-03 | 395-410nm | 400mW | 150mA | 3.4 V | >80 | |||

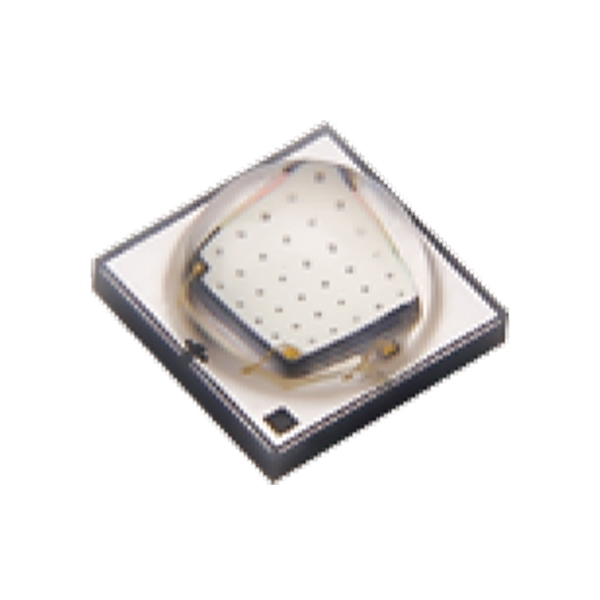

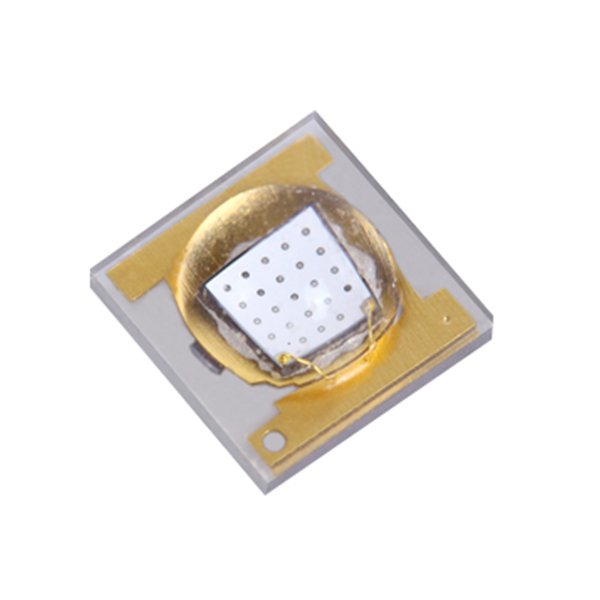

| 3535 |
|
SOL-3535UA300-01 | 365-375nm | 800-900mW | 900mA | 3.8 V | >80 |
|
| SOL-3535UA300-02 | 380-390nm | 900-1000mW | 900mA | 3.8 V | >80 | |||
| SOL-3535UA300-03 | 395-410nm | 950-1050mW | 900mA | 3.6V | >80 | |||
|

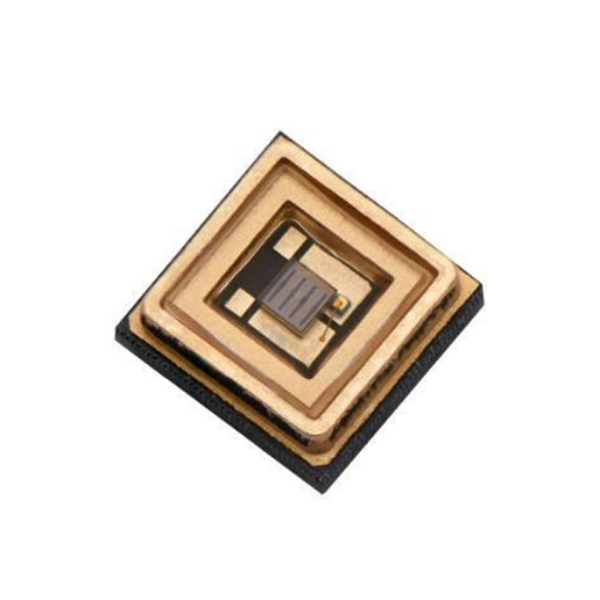

SOL-3535UC050-XX | 265-285nm | 6-10mW | 60 mA | 6-10V | >80 |
|
|
| SOL-3535UC100-XX | 265-285nm | 6-12mW | 100mA | 6-8V | >80 |
|
Application
Horticulture
Uitraviolet
Marine light
