Product instruction:

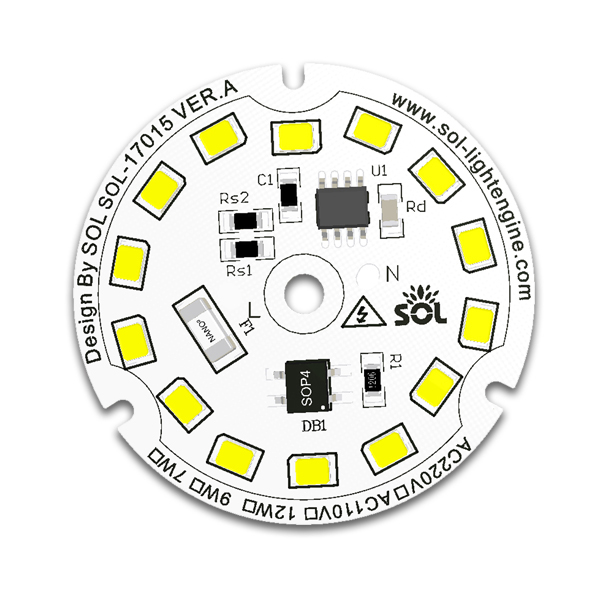

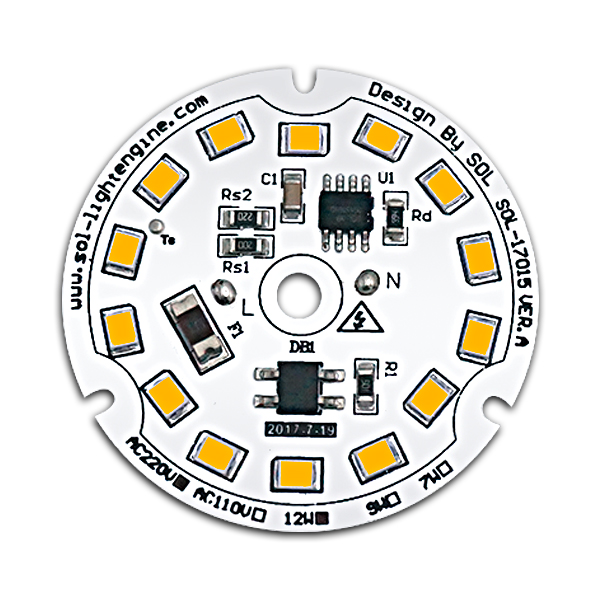

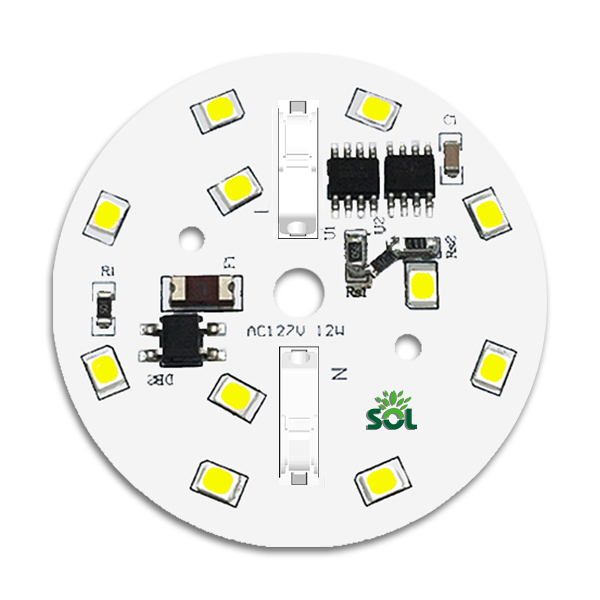

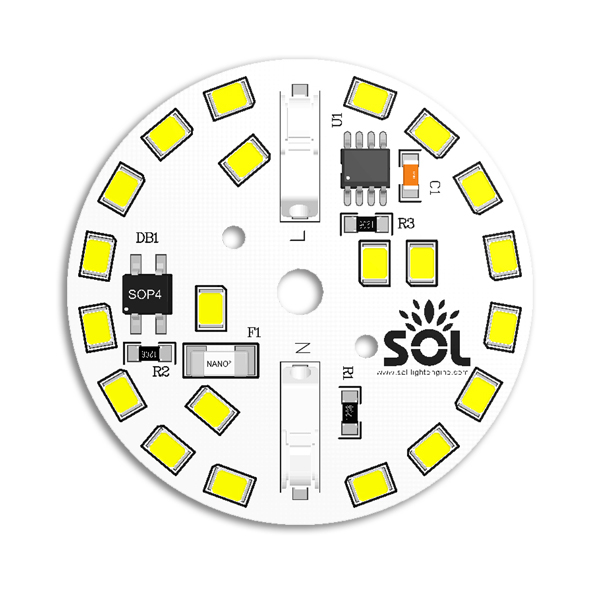

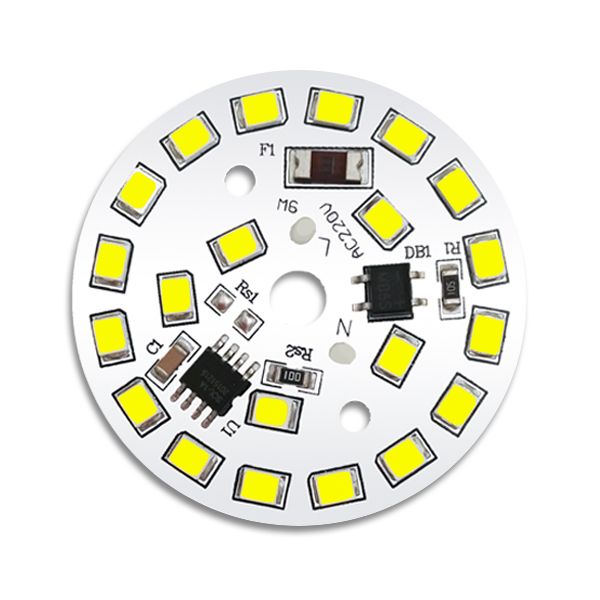

SOL AC Direct Round Series offer the great solutions for home, office and industrial applications.

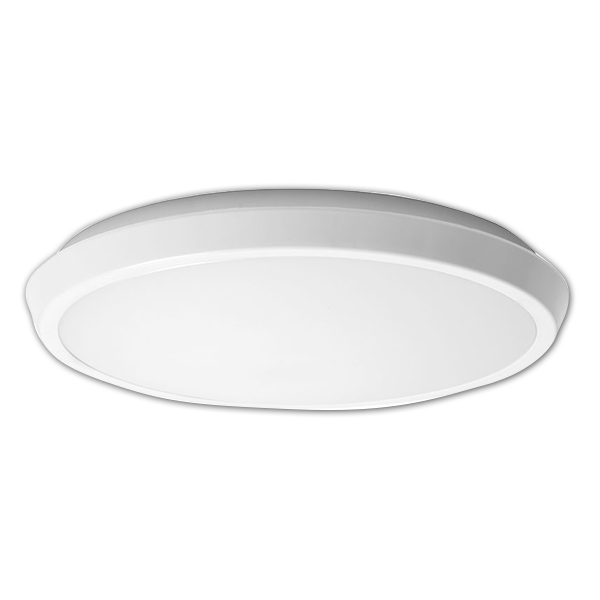

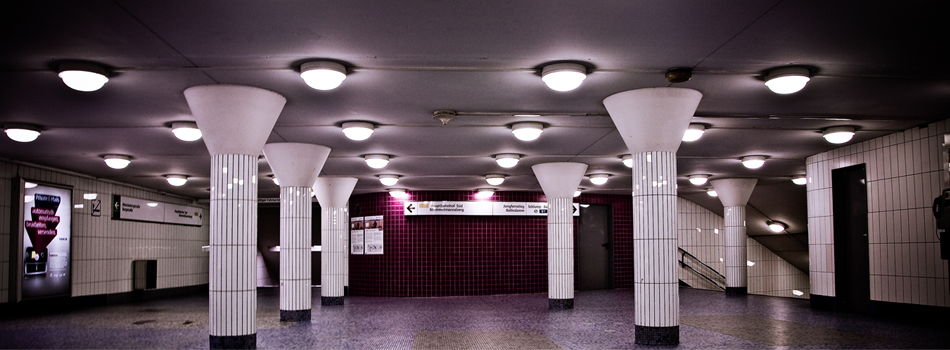

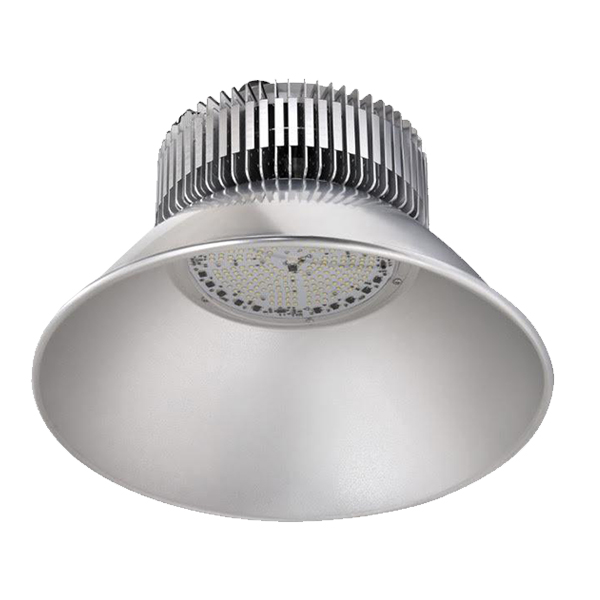

The ideal fit for a variety of luminaires and can be used in wall and ceiling bulkhead fixtures.
Specification
| Part Number | CCT | CRI | QTY of LEDs | Input Voltage | Typ. Power | Typ. Flux | Typ. Efficacy |
| SLAM-F007R46W-XX |
2700/ |
>80 | 14 | 110/ 220 | 7 | 665 | 95 |
| SLAM-F009R46W-XX | 9 | 855 | 95 | ||||
| SLAM-F009R46W-XX | 12 | 1080 | 90 | ||||
| SLAM-F007R46P-XX |
4000/ 5000/ |
>80 | 14 | 110/ 220 | 7 | 735 | 105 |
| SLAM-F009R46P-XX | 9 | 945 | 105 | ||||
| SLAM-F012R46P-XX | 12 | 1200 | 100 | ||||
| SLAM-P005R46W-XX |
2700/ 3000 |
>80 | 14 | 110/ 220 | 5 | 575 | 115 |
| SLAM-P007R46W-XX | 7 | 770 | 110 | ||||
| SLAM-P009R46W-XX | 9 | 945 | 105 | ||||
| SLAM-P005R46P-XX |
4000/ 5000/ |
>80 | 14 | 110/ 220 | 5 | 625 | 125 |
| SLAM-P007R46P-XX | 7 | 840 | 120 | ||||
| SLAM-P009R46P-XX | 9 | 1035 | 115 | ||||
| Units | K | PCS | Vac | W | lm | lm/W |
Application
Horticulture
Uitraviolet
Marine light
